W24IH3S-MRA1FP

W24IH3S-MRA1FP

Winmate
SKU: 56539500

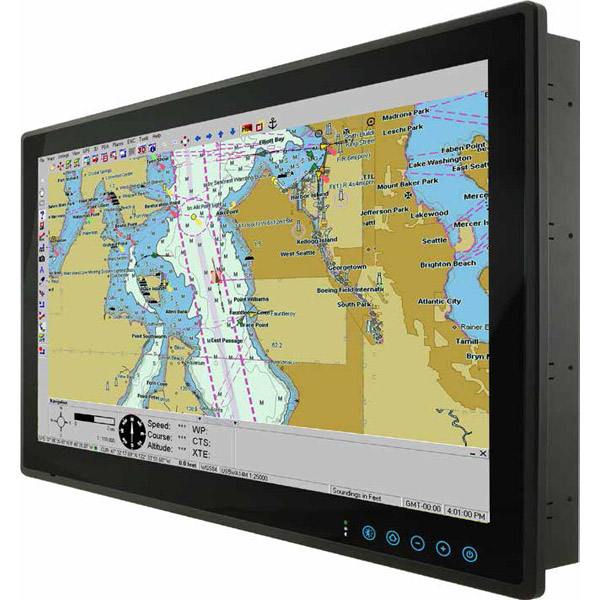

Marine Fanless Panel PC 24" (1920 x 1080) 350cd/m2, P-CAP touch, Intel i5-5350U 1.8GHz, 4GB DDR3, 128GB SSD, 2xCOM, 2xLAN, 3xUSB, HDMI, Audio, PSU 24V DC (9~36V),IEC 60945 4th, IACS-E10, CE, FCC, DNVGL-CG-0339
Price on request
Available
Available

Display
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Brightness
350 Cd/m2
Contrast Ratio
5000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-5200U
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel QM87
Memory
Form-factor
DDR3
Default on Board Memory
4 GB
Maximum Memory
16 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Operating Conditions
Operating Temperature
-15..55 °C
Standards and Certifications
Certifications
CE, FCC
Marine grade
IACS-E10
Safety
IEC 60945 (4th)
Dimensions
Net Weight
10.3 kg
Gross Weight
12 kg
