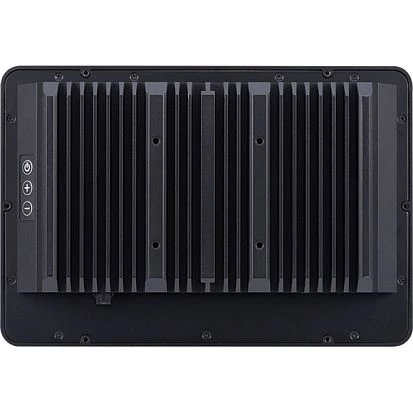

PPC-120T-AL-S
NEXCOM
SKU: 80184700
12.1" Marine Fanless Panel PC, IP65 Front, 1280x800, 600cd/m2, PCAP Touch, Intel Celeron J3455E 2.3GHz CPU, 8GB DDR3L RAM, 128GB M.2 SATA SSD, 1xDP, 4xGbE LAN, 2xCOM, 2xUSB 3.0, 1xUSB Type-C, 18-32VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
600 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron J3455E
Socket
FCBGA1296
Max CPU frequency
2.3 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
4
10/100/1000 Mbit/s
3
PoE 10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
LED / Controls
LED
Power LED
Controls
On/Off, Volume Keys
Connectors
Connectors

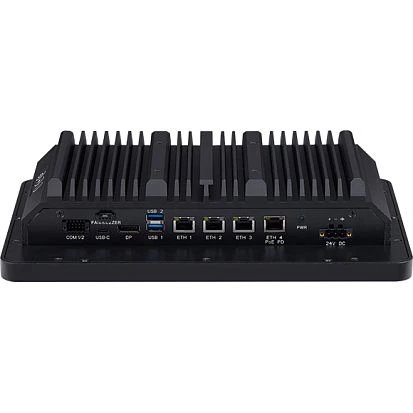

4xRJ45 Ethernet, 2xUSB, Display Port, DC input (terminal block), 2xCOM (terminal block), USB type C
System Power Input
Input Voltage DC
18..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
307.5 mm
Height
209 mm
Depth
64 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Marine grade
IEC 60945 4th
Dimensions
Net Weight
4.8 kg
Gross Weight
5.8 kg
