W12IE3S-MRB1FP
Winmate
SKU: 10878300

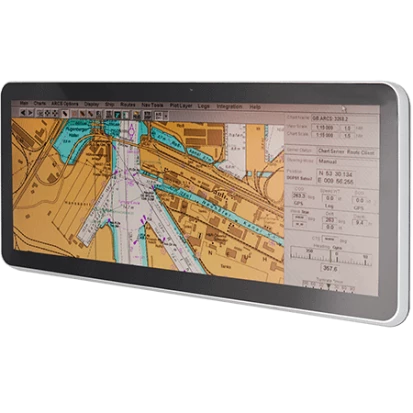

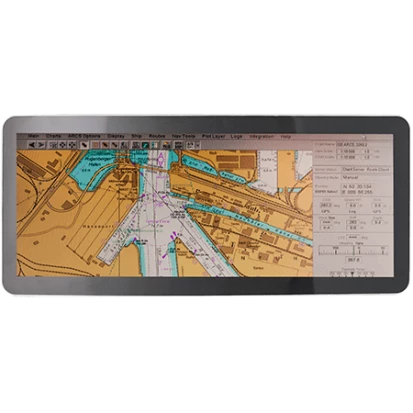

12.3" TFT LCD Panel PC, 1920x720, PCAP, with Intel Pentium N6415 3,00Ghz, 4GB RAM, 256GB SSD, M12 (1xCOM, 1xUSB, 1xUSB/LAN), M16 24V DC/9-36V DC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.3 "
Maximum resolution
1920x720 Dots
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Pentium N6415
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
256 GB
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
M12 USB, M12 (COM), M12 (USB/LAN), M16 (DC)
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
323.73 mm
Height
145.22 mm
Depth
44.9 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.5 kg
Gross Weight
5 kg
