W15IAD3S-MRC3FP

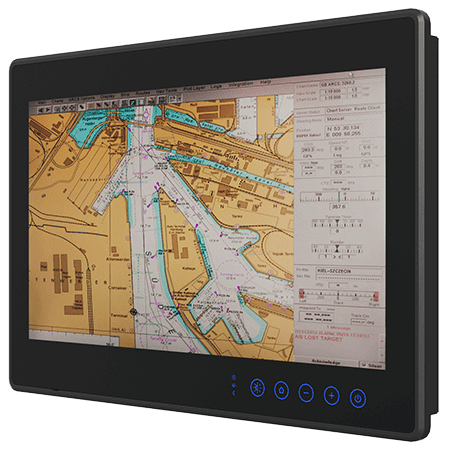

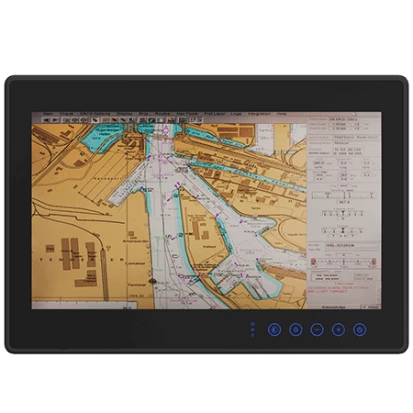

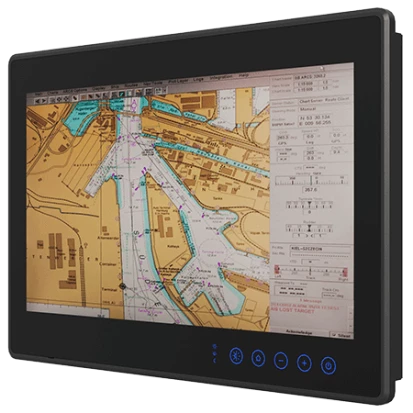

W15IAD3S-MRC3FP

Winmate
SKU: 80125300
15.6" Fanless Marin ECDIS Panel PC, IP66 Front, 1920x1080, 450 cd/m2, AR Coating, PCAP Touch, Intel Core i5-1335U CPU, 8GB DDR5 RAM, 128GB NVME SSD, HDMI Opt., 2xGbE LAN, 2xUSB 3.2, 1xCOM, 4xNEMA Opt., DIO Opt., 9-36VDC-in with PSU
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
400 mm
Height
276 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV
Dimensions
Net Weight
6.8 kg
Gross Weight
7.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
400 mm
Height
276 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV
Dimensions
Net Weight
6.8 kg
Gross Weight
7.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
400 mm
Height
276 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV
Dimensions
Net Weight
6.8 kg
Gross Weight
7.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
450 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1335U
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
400 mm
Height
276 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Marine grade
DNV
Dimensions
Net Weight
6.8 kg
Gross Weight
7.6 kg

Documentation
W15IAD3S-MRC3FP-Datasheet.pdf
Documentation
W15IAD3S-MRC3FP-Datasheet.pdf
Documentation
W15IAD3S-MRC3FP-Datasheet.pdf
Documentation
W15IAD3S-MRC3FP-Datasheet.pdf

Get a Quote

Winmate
SKU: 80125300
W15IAD3S-MRC3FP
W15IAD3S-MRC3FP
W15IAD3S-MRC3FP
