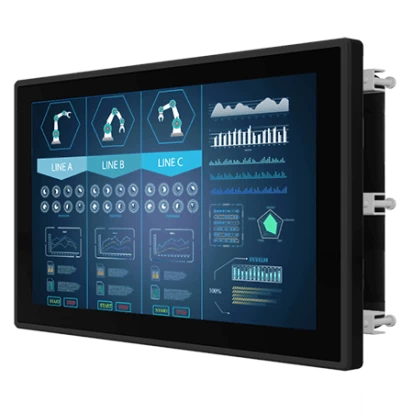

W22L100-EHA3

W22L100-EHA3

Winmate
SKU: 57911100
21.5" Industrial Panel Display, IP65 Front, 1920x1080 TFT LCD, 250cd/m2, AG Opt., PCAP Touch, VGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
531 mm
Height
322 mm
Depth
59 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6.4 kg
Gross Weight
7.4 kg
