APPD-1500-1
NEXCOM
SKU: 10709900

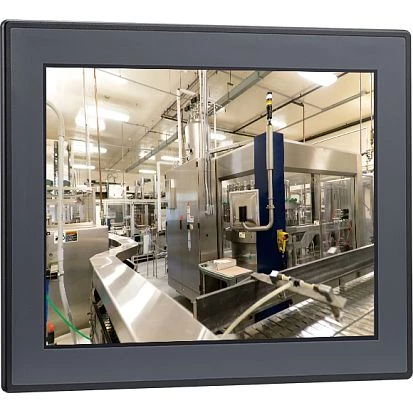

15" XGA Industrial Touch Monitor, 1024 x768, 400cd/m2, Resistive (flush panel type) Touch, VGA, DVI-D, Display Port, RS-232 / USB touch interfaces, Plastic front bezel, 24V DC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
2500~1
Input Interface
DisplayPort, VGA, DVI-D
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors

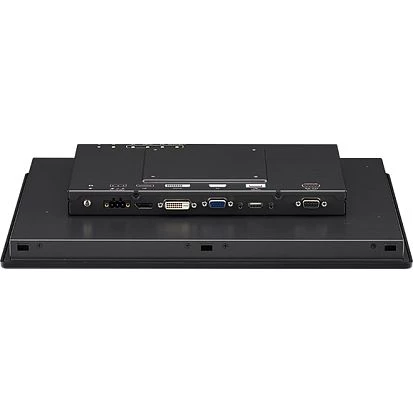

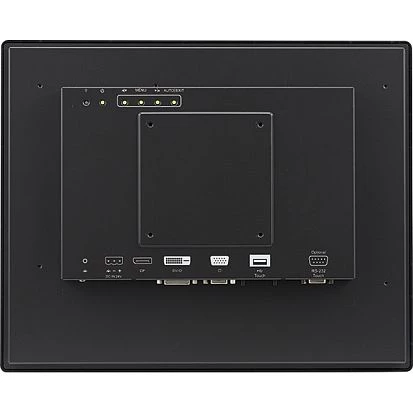

DB9, DVI-D, DB15 VGA, 1xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Dimensions and weight
Width
384.25 mm
Height
309.83 mm
Depth
53.2 mm
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
