TDM-P101W
ELGENS
SKU: 09018900

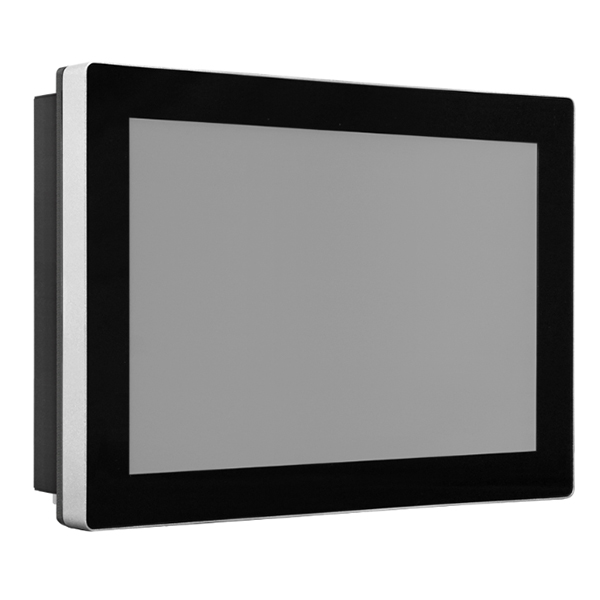

10.1" Bezel-Free P-cap Monitor, IP65 Aluminum Front Bezel, VGA/DVI/HDMI, 1280*800, 400nits, -20...70C, 9...36VDC-in, power adapter
910,81 €
Price excl. VAT and shipping cost
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65, IP66
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
400 Cd/m2
Contrast Ratio
800~1
Input Interface
VGA, DVI-I
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DVI-I, DB15 VGA
System Power Input
Input Voltage DC
9..36 V
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
254.9 mm
Height
172.6 mm
Depth
54 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
