R19L300-PPA3OD
Winmate
SKU: 10758500

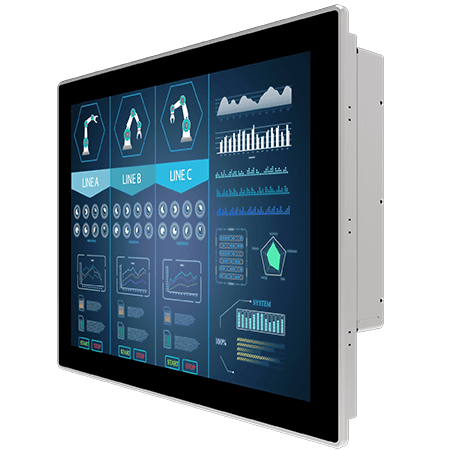

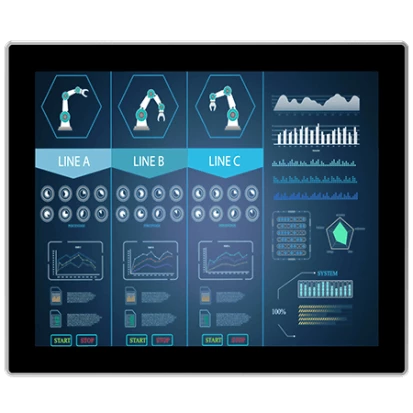

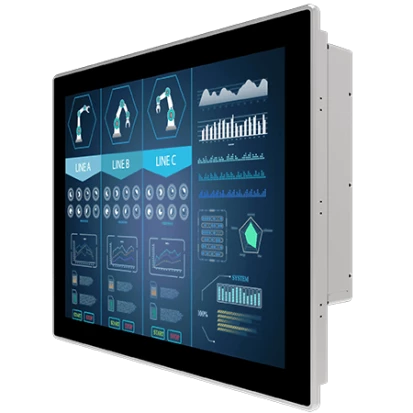

19" Panel Mount Display, IP65 front, 1280x1024, 1000cd/m2, PCAP Touch (USB), VGA, HDMI/DVI/Audio Optional, 12VDC-in with Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-95%
Temperature (Storage)
-20~+70
Dimensions and weight
Width
446 mm
Height
370 mm
Depth
77 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
6 kg
Gross Weight
7.2 kg
Construction
