TP-6150/NP
ICP DAS
SKU: 09409800

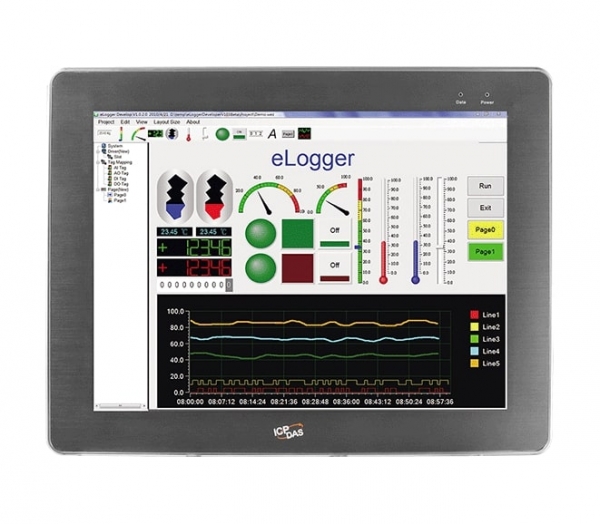

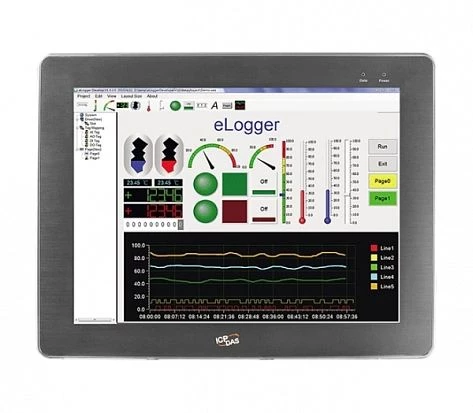

15" TFT LCD Resistive Touch Panel Monitor, 1024x768, VGA, RS-232 / USB Touch Screen Interface, w/o Power supply, VGA cable, RS-232 cable, USB cable, Mounting clamps and screws
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
RS-232, USB
System Power Input
Input Voltage DC
12..48 V
Power Consumption
14.4 W
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
381 mm
Height
305 mm
Depth
65 mm
Dimensions
Net Weight
5.3 kg
Gross Weight
5.3 kg
