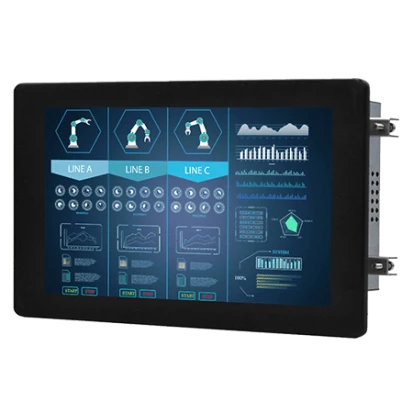

W10L100-PMH2

W10L100-PMH2

Winmate
SKU: 57912200
10.1" Industrial Panel Display, 1280x800 TFT LCD, 350cd/m2, Resistive Touch Opt., Protection Glass Opt., 1xVGA, HDMI Opt., DVI Opt., 1xUSB, Audio Opt., 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Input Interface
VGA
Touch Screen
Interface
USB
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-10~+60
Dimensions and weight
Width
286 mm
Height
182 mm
Depth
38 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.25 kg
Gross Weight
1.65 kg
