W22IBWS-MHA3

W22IBWS-MHA3

Winmate
SKU: 07043000

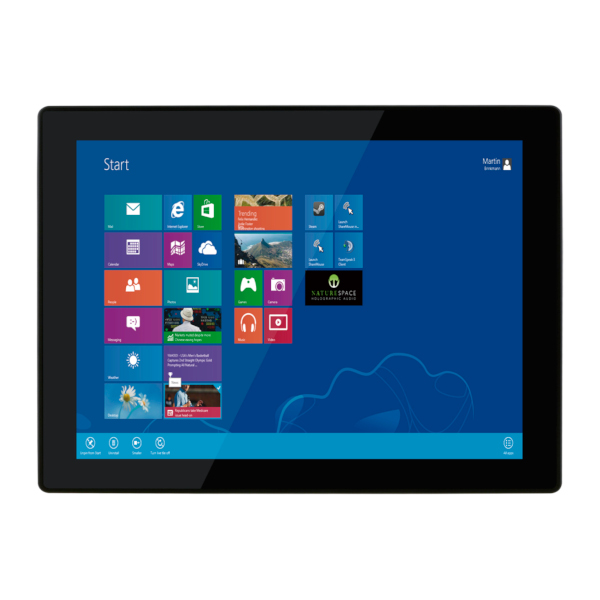

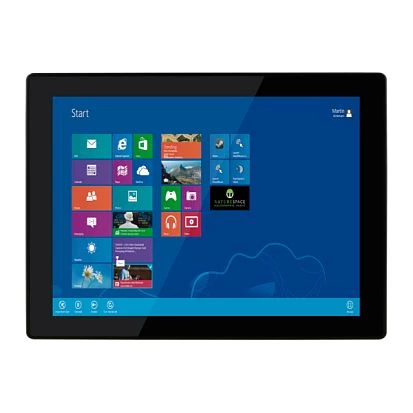

21.5" Fanless Panel PC, M Series, IP65 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Atom E3845 1.91GHz CPU, Up to 8GB DDR3L RAM, 128GB mSATA SSD, HDMI/VGA Opt., 2xGbE LAN, 4xUSB 2.0, 1xCOM, Audio, 1x2.5" Bay, 1xmPCIe Half-Size, 12-24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1980x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
4
Audio
Audio Controller
Realtek ALC886
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Audio Out, DC input (terminal block), Audio In
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
80 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
530.5 mm
Height
322 mm
Depth
79.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
8.4 kg
Gross Weight
9.7 kg
