W15IM3S-ELA2

W15IM3S-ELA2

Winmate
SKU: 80114900

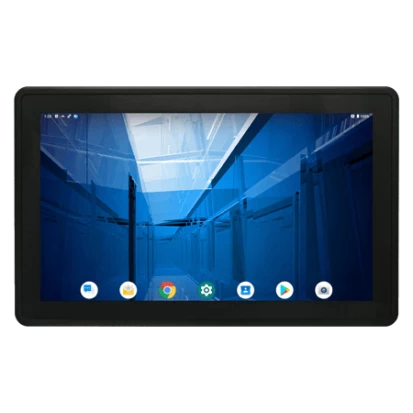

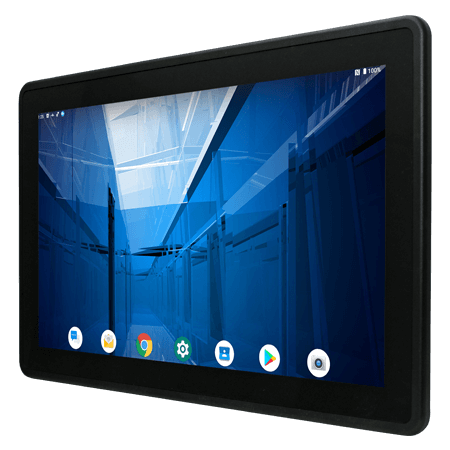

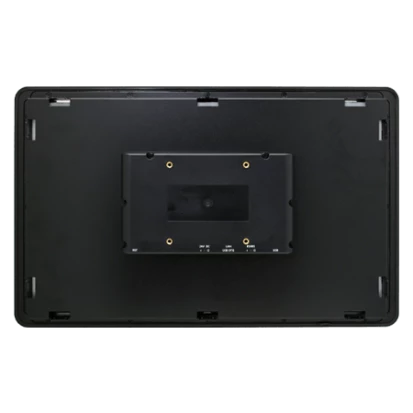

15.6" Fanless Panel PC, EL Series, IP65 Front, 1366x768, 400cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xGbE LAN, 1xCOM, 1xUSB 2.0, 1xMicro-USB OTG, 12-24VDC-in, Android
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
USB Total
2
USB 2.0
2
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
LED / Controls
Controls
1xReset
Connectors
Connectors
DB9, RJ45 Ethernet, 1xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu
Operating System Installed
Android
Dimensions and weight
Width
402 mm
Height
251.3 mm
Depth
53 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3.1 kg
Gross Weight
3.8 kg
