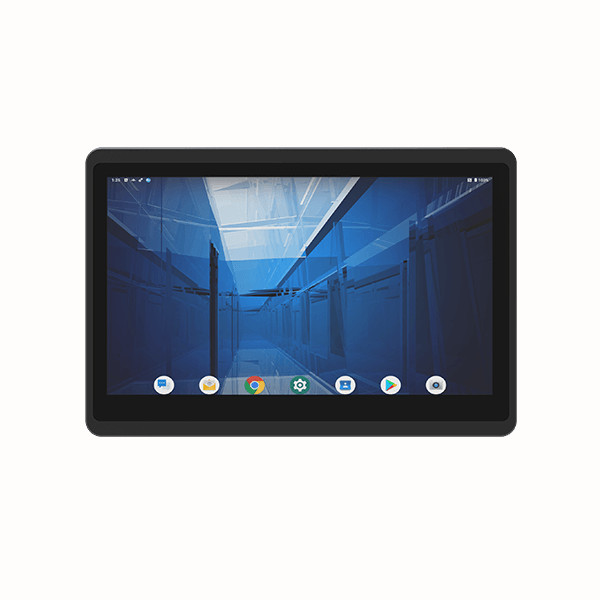

W15IM3S-EHA4
Winmate
SKU: 57698600
15.6" Fanless Panel PC, E Series, IP65 Front, 1920x1080, 400 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI (Optional), 1xCOM, 2xUSB 2.0, 1xMicro-USB 2.0 OTG, 1xGbE LAN, 1xMicroSD, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot, Micro HDMI
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Android
Dimensions and weight
Width
388 mm
Height
260 mm
Depth
62.5 mm
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
2.8 kg
Gross Weight
3.4 kg
