W15IE3S-EHA4
Winmate
SKU: 57698500

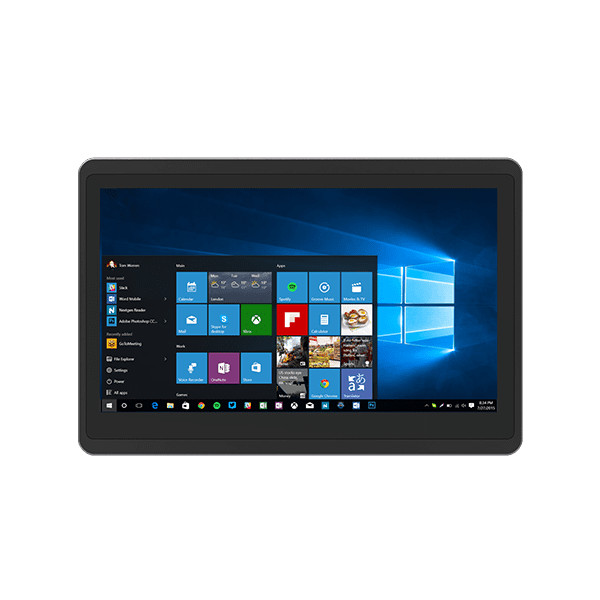

15.6" Fanless Panel PC, E Series, IP65 Front, 1920x1080, 400cd/m2, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, Up to 16GB DDR4 RAM, Up to 512GB SATA SSD, HDMI Opt, 2xGbE LAN, 2xUSB 3.2, 1xCOM, 1xM.2 2242 Key-B, 1xM.2 2230 Key-E, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Brightness
400 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
Extension Slots
Total
2
M.2
2
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
388 mm
Height
260 mm
Depth
62.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
2.7 kg
Gross Weight
3.4 kg
