W15FA3S-EHA4

W15FA3S-EHA4

Winmate
SKU: 57698800

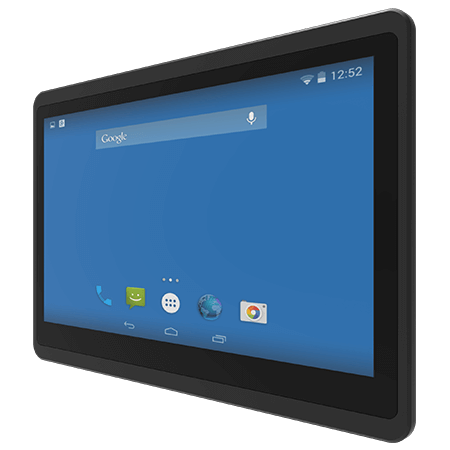

15.6" Fanless Panel PC, E Series, IP65 Front, 1920x1080, 400 cd/m2, PCAP touch, NXP i.MX6 Dual-Core 1.0GHz CPU, 1GB RAM, 16GB eMMC, 1xMicroHDMI, 1xCOM, 1xCAN, 1xMiniUSB, 1xMicroUSB, 1xUSB 2.0, 1xPoE LAN, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Brightness
400 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
NXP i.MX6 dual-core
Socket
CPU onboard
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Industrial Interfaces
CAN Port
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, RJ45 Ethernet, 1xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot, Console Port Mini USB
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Android, Linux kernel 4.x, Ubuntu 18.04 LTS, Debian 7.7
Dimensions and weight
Width
388 mm
Height
260 mm
Depth
62.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
8 kg
Gross Weight
9 kg
