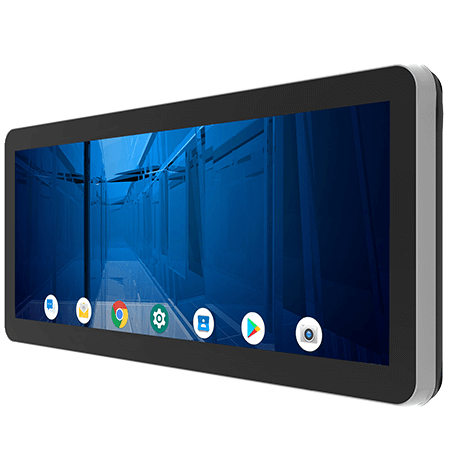

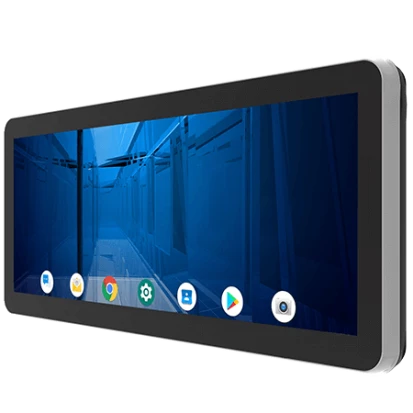

W12IM3S-GCB1
Winmate
SKU: 57916000
12.3" Fanless Panel PC, G-WIN GC Series, IP65 Front, 1920x720, 1000 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI (Optional), 1xCOM, 2xUSB 2.0, 1xMicro-USB OTG, 1xGbE LAN, 1xMicroSD, 12VDC-in w/ PSU
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.3 "
Maximum resolution
1920x720 Dots
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu
Operating System Installed
Android
Dimensions and weight
Width
325.02 mm
Height
146.5 mm
Depth
45 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
4.4 kg
Gross Weight
5.1 kg
