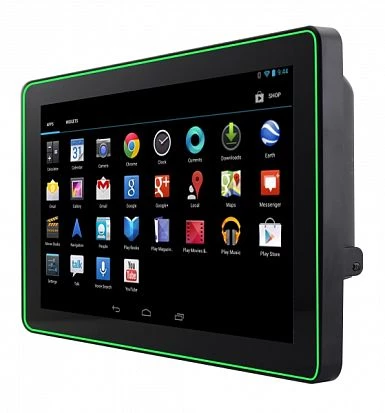

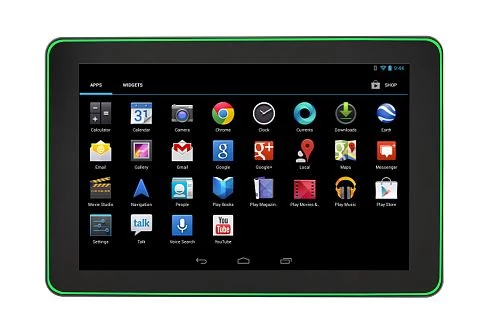

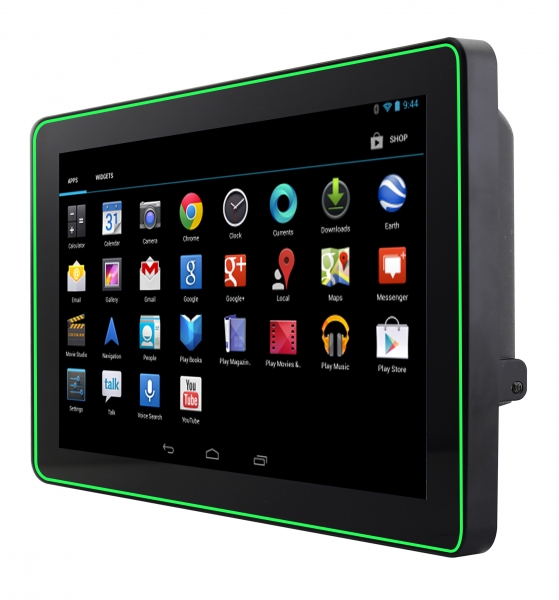

W10RK3S-PCH2LB

W10RK3S-PCH2LB

Winmate
SKU: 08673100
Fanless Panel Computer 10,1" TFT LCD, 1280 x 800, P-CAP Multi-Touch, ARM Cortex A72+A53 up to 2GHz, 2GB LPDDR3L, 16GB eMMC, Micro SD, Micro HDMI, 1xUSB 2.0, 1xUSB OTG, LAN (PoE), 1xCOM, CANBus 12VDC-in, Android 7.1, RGB LED Status Bar
Price on request
Available
Available

Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex
Socket
CPU onboard
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
LED / Controls
LED
Power LED, Programmable LED Light Bar Indicator
Controls
On/Off
Connectors
Connectors
2xDB9, 2xUSB, DC input (terminal block), MicroSD card slot, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android
Dimensions and weight
Width
263.28 mm
Height
171 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
