W10RK3S-PCH2AC-POE

W10RK3S-PCH2AC-POE

Winmate
SKU: 56771700

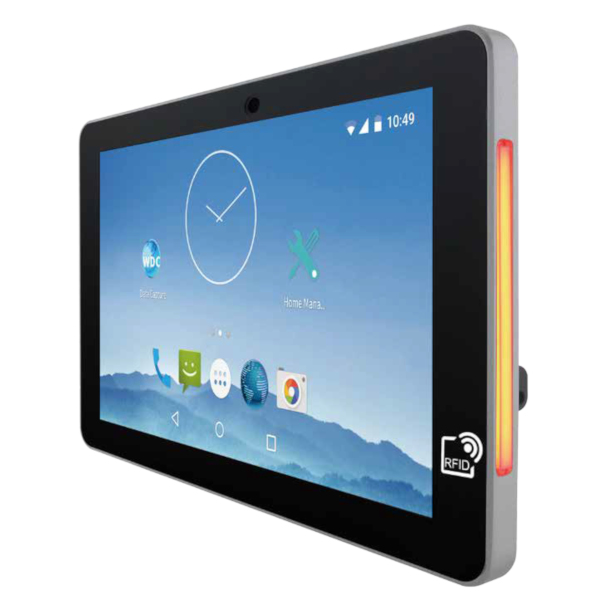

Fanless Panel Computer 10,1" TFT LCD, 1280 x 800, P-CAP Multi-Touch, ARM Cortex A72+A53 up to 2GHz, 2GB LPDDR3L, 16GB eMMC, Micro SD, Micro HDMI, 3xUSB,, 1x1000 PoE 802.3at, 1xCOM, 12VDC-in, Android 7.1, RGB LED Status Bar
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
CPU Support Type
ARM Cortex
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Maximum Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB v3.x
2
Drive interfaces
MicroSD
1
LED / Controls
LED
LED Bar
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, DC Input, SD card slot, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Power Consumption
10 W
Software
Operating System Installed
Android
Dimensions and weight
Width
171 mm
Height
263.28 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
