W10RK3S-PCH2-POE

W10RK3S-PCH2-POE

Winmate
SKU: 56771800

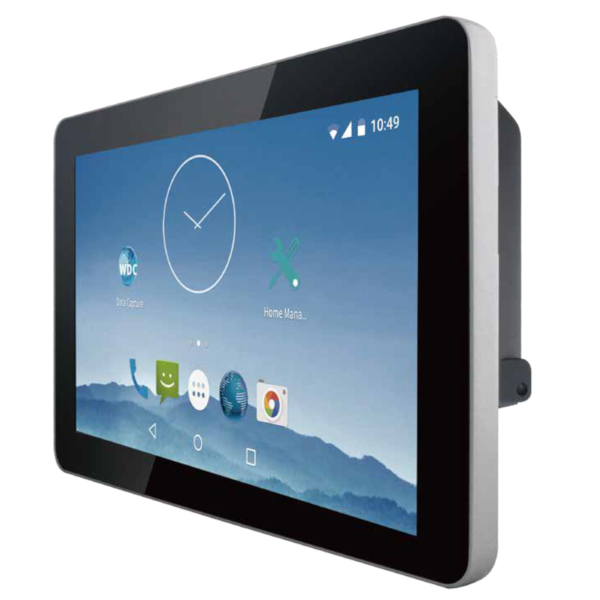

Fanless Panel Computer 10,1" TFT LCD, 1280 x 800, P-CAP Multi-Touch, ARM Cortex A72+A53 up to 2GHz, 2GB LPDDR3L, 16GB eMMC, Micro SD, Micro HDMI, 2xUSB 3.0,1xUSB OTG, 1x 1000Mbps RJ45 (Support PoE IEEE 802.3at), 1xCOM, 12VDC-in, Android 7.1
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
CPU Support Type
ARM Cortex
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Maximum Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB v3.x
2
Drive interfaces
MicroSD
1
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, DC Input, SD card slot, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Power Consumption
10 W
Software
Operating System Installed
Android
Dimensions and weight
Width
171 mm
Height
263.28 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
