W10L100-EHH2OD
Winmate
SKU: 80189900

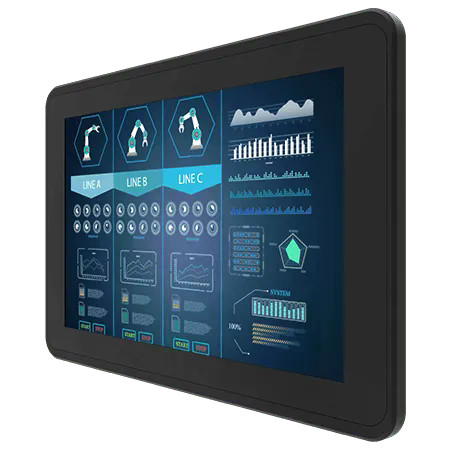

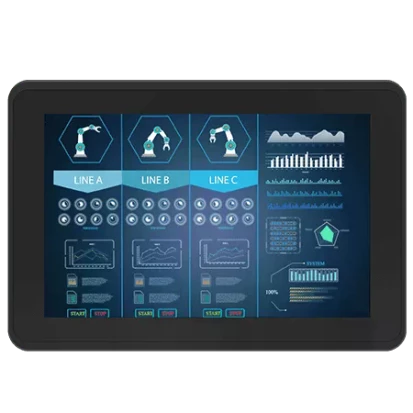

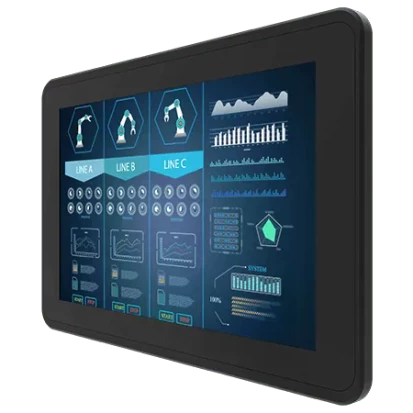

10.1" Panel Mount Display, IP65 front, 1280x800, 1000cd/m2, PCAP Touch (USB), VGA, HDMI/DVI/Audio Optional, 12VDC-in with Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
1000 Cd/m2
Contrast Ratio
800~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
DB15 VGA, 1xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Temperature (Storage)
-20~+70
Dimensions and weight
Width
267 mm
Height
182 mm
Depth
56.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.8 kg
Gross Weight
2.6 kg
