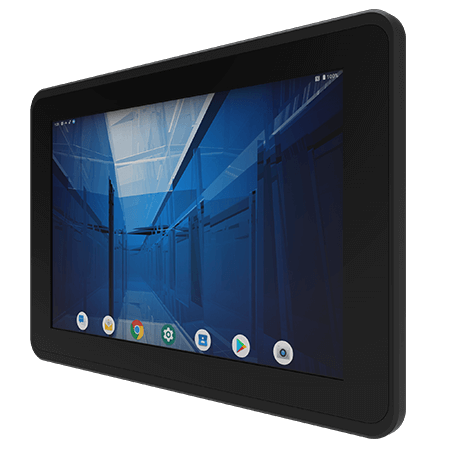

W10IQ3S-EHH2

W10IQ3S-EHH2

Winmate
SKU: 09466200
10.1" Fanless Panel PC, E Series, IP65 Front, 1280x800, 350 cd/m2, Qualcomm Snapdragon 660 2.2GHz CPU, 3GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI Opt., 1xCOM, 2xUSB 2.0, 1xUSB 3.0 Type-C, 1xGbE LAN, 1xMicroSD, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Qualcomm Snapdragon 660
Chipset
Chipset
SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
3 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
2
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), MicroSD card slot, Micro HDMI, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Android
Dimensions and weight
Width
267 mm
Height
182 mm
Depth
56.5 mm
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
1.5 kg
Gross Weight
2.1 kg
