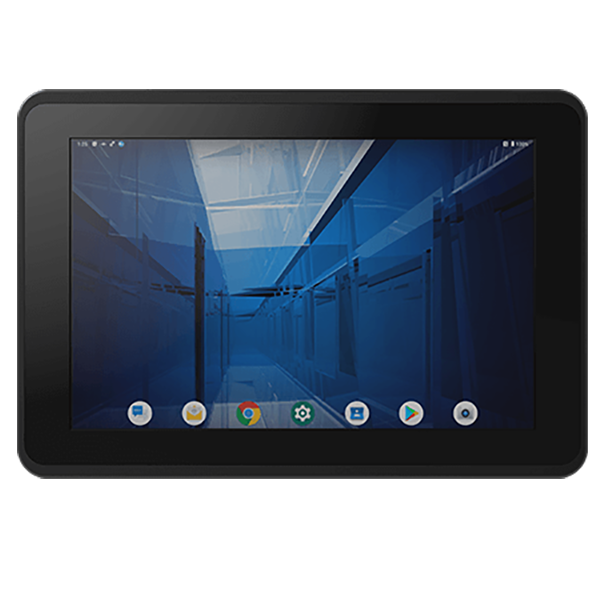

W10IM3S-EHH2
Winmate
SKU: 57680000
10.1" Fanless Panel PC, 1280x800, 350 cd/m2, IP65 Front, ARM Cortex A53 2.0GHz CPU, 4GB LPDDR4 RAM, 32GB eMMC, 1xMicroHDMI (Optional), 1xRS232/422/485, 2xUSB 2.0, 1xMicro-USB 2.0 OTG, 1xGbE LAN, 1xMicroSD, 12VDC-in Terminal Block with PSU, 0..50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1024x600 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Android
Dimensions and weight
Width
267 mm
Height
182 mm
Depth
56.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
