W10IE3S-EHH2
Winmate
SKU: 57679800

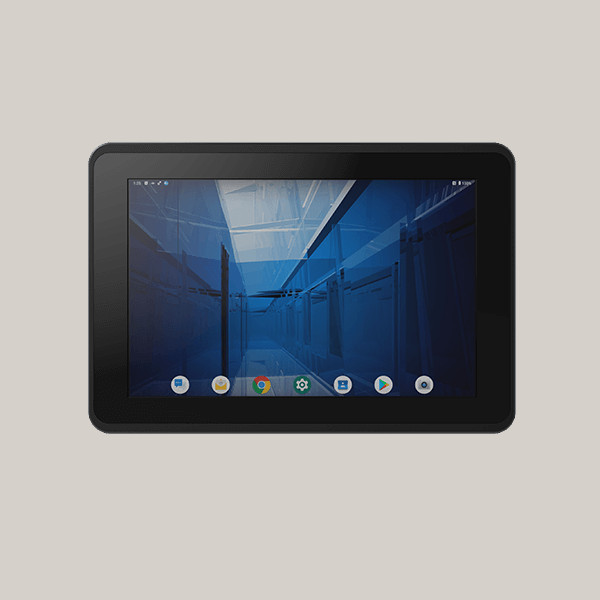

10.1" Fanless Panel PC, 1280x800, 350 cd/m2, IP65 Front, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, HDMI, 1xRS232/422/485, 2xUSB 3.2, 2xGbE LAN, 1xM.2 Key-E, 1xM.2 Key-B, TPM 2.0, 12VDC-in Jack with Power Adapter, 0..50C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
Extension Slots
Total
2
M.2
2
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
267 mm
Height
182 mm
Depth
56.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
