W10IB3S-PCH2-POE

W10IB3S-PCH2-POE

Winmate
SKU: 56135400

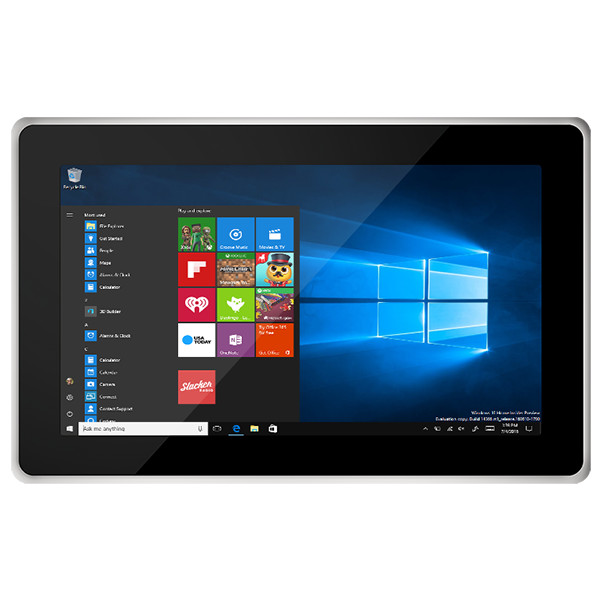

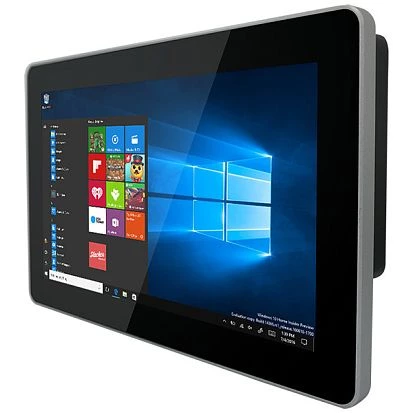

10.1" Fanless Panel PC, Front IP65, 1280x800, P-Capacitive Multi-touch, Intel Celeron N2930 1.83GHz, 4GB DDR3 SO-DIMM RAM, 128GB mSATA SSD, COM, 2xUSB, 2xGbit LAN(1xPoE), 12V DC-In ( Bulit-in POE)
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
Channels of DIO
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Connectors
Connectors
DB9, 2xUSB
System Power Input
Input Voltage DC
12..12 V
Power Consumption
19 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
263.28 mm
Height
172 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.2 kg
Gross Weight
1.6 kg
