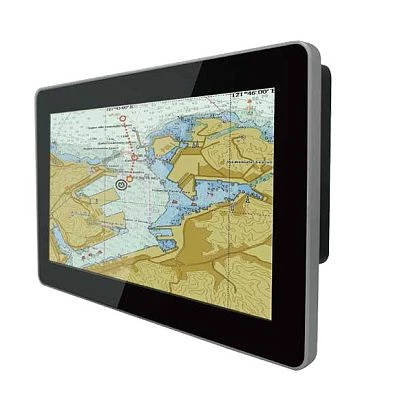

W10IB3S-MRH2

W10IB3S-MRH2

Winmate
SKU: 08337300
Marine Fanless Panel Computer IP66 front, 10.1" TFT LCD, 350 Nits 1280x800, P-CAP Multi touch, Intel Celeron N2930 1.83GHz, 4GB RAM, 128GB mSATA SSD, USB, GbE LAN, 2xCOM, 9..36V DC ( M12 Type Connectors), IEC 60945 4th Edition, w/o OS
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP44
Display
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
3
RS-232
2
RS-422
1
USB Total
1
USB 2.0
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
Antenna characteristics
Cellular interfaces
3G
Additional Functions
GPS
GPS
Connectors
Connectors
RJ45 Ethernet, DC Input
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 7 Professional, Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS
Dimensions and weight
Width
263.3 mm
Height
173.6 mm
Depth
40.2 mm
Operating Conditions
Operating Temperature
-15..55 °C
Dimensions
Net Weight
1.64 kg
Gross Weight
2.18 kg
