W10IB3S-EHH2

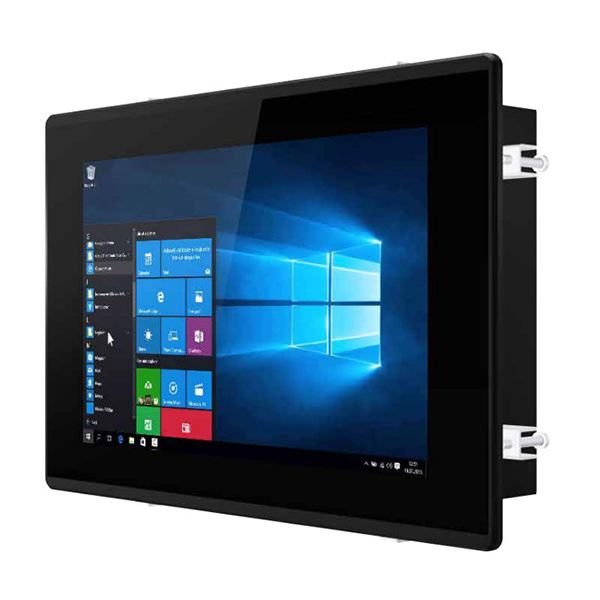

W10IB3S-EHH2 Intel Celeron Quad Core Panel PC has 10.1 '' touch screen, 64GB mSATA SSD, HDMI, Dual LAN, 2x COM, 2x USB With an Intel Celeron Quad Core CPU N2930 and a 10.1'' TFT LCD Touch Screen, the Industrial Panel PC W10IB3S-EHH2 combines very high computing performance with a compact, fanless design. Equipped with a serial COM port, USB 3.0 and dual LAN and its ability to Independent Dual View, the embedded computer has versatile applications. For high energy efficiency without significant performance losses, the W10IB3S-EHH2 uses an Intel Celeron N2930 with an average power loss of 7.5 watts TDP at full load and a clock frequency of up to 2.16 GHz in burst mode. The RAM of the basic version of 2 GB DDR3L Low Energy RAM is expandable to 4 GB for computing-intensive processes. For a fast and reliable data exchange between the components, the Industrial Panel PC uses an SSD with 64 GB capacity connected via mSATA. With a resolution of 1280 x 800, the 10.1'' touch screen has an above-average pixel density and uses the image format suitable for technical applications 8:5. The brightness of 350 cd/m² with a contrast of 800:1 allows the use in bright environments and under daylight. In addition to the primary screen, the Panel PC W10IB3S-EHH2 also offers Independent Dual View by connecting a second display or touch screen via an HDMI output. The communication with the peripheral devices takes place digitally via a USB 3.0 and a USB 2.0 port or serially via Serial COM RS232/422/485. Redundant and parallel connections to one or more networks enable the dual LAN ports with 10/100/1000 Mbit/s for the Ethernet. Like many industrial Panel PCs, the W10IB3S-EHH2 has a front panel that is insulated against moisture and dirt according to protection level IP65. This seal makes it easier to use in adverse and dusty or humid environments, on the other hand, it also ensures a quick and safe cleaning. Due to the exceptional efficiency with an average power of 19 watts through a 12 VDC power supply, the compact Panel PC offers both a cost-effective continuous operation as well as for mobile and battery-powered installation. Possible fields of application range from industrial automation to computation-intensive quality management through multiple sensors, IoT and machine control, to the monitoring of system-critical systems in real time.
