W10FA3S-ELH2

W10FA3S-ELH2

Winmate
SKU: 57125400

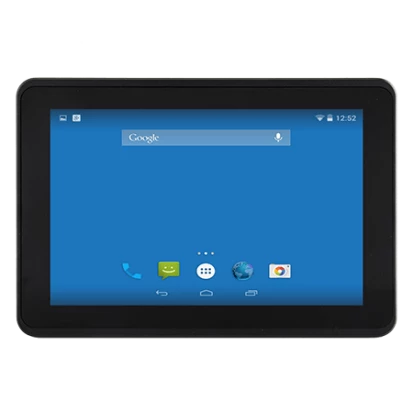

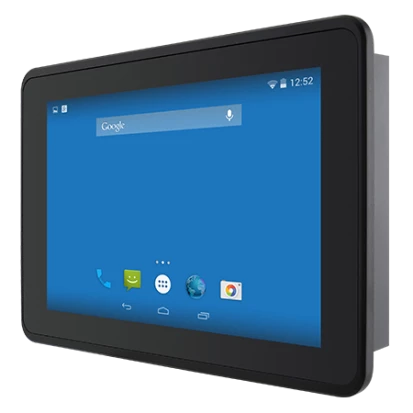

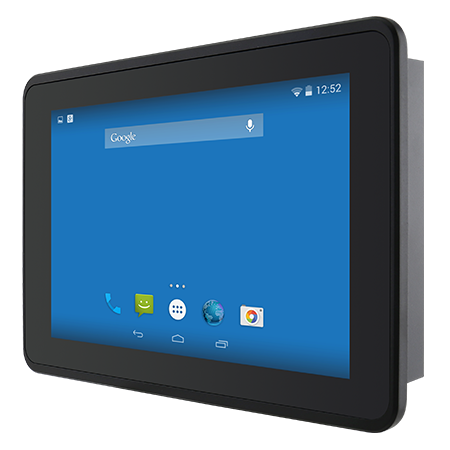

10.1" Fanless Panel PC, EL Series, IP65 Front, 1280x800, 350 cd/m2, PCAP Touch, NXP i.MX6 Dual Core 1GHz SoC, 1GB LPDDR3 RAM, 8GB eMMC, 1xCOM, 1xUSB 2.0, 1xUSB OTG, 1xGbE LAN, 12-24VDC-in w/PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
NXP i.MX6 dual-core
Socket
CPU onboard
Max CPU frequency
1 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
USB Total
2
USB 2.0
2
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
LED / Controls
Controls
1xReset
Connectors
Connectors
DB9, RJ45 Ethernet, 1xUSB, DC input (terminal block), 1xMicro USB, 1xCAN Bus
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Linux OS, Ubuntu
Dimensions and weight
Width
267 mm
Height
182 mm
Depth
47 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
2 kg
Gross Weight
1.35 kg
