W10FA3S-EHH2

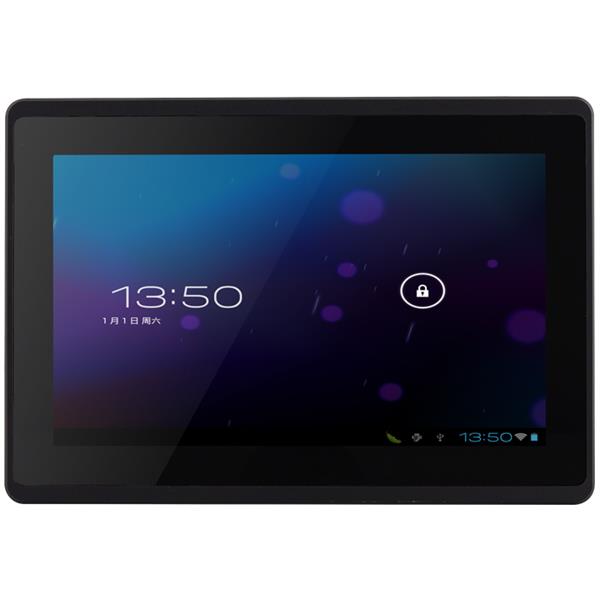

W10FA3S-EHH2

Winmate
SKU: 56435600
10" Fanless Panel PC, E Series, IP65 Front, 1280x800, 350 cd/m2, NXP i.MX6 Dual-Core 1.0GHz CPU, 1GB RAM, 16GB eMMC, 1xMicroHDMI Opt., 1xCOM, 1xCAN, 1xMiniUSB, 1xUSB OTG, 1xUSB 2.0, 1xPoE LAN, 1xMicroSD, 1xmPCIe, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
1
USB 2.0
1
Drive interfaces
MicroSD
1
Connectors
Connectors
DB9, 1xUSB, Micro HDMI
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Android, Linux OS, Ubuntu
Dimensions and weight
Width
199 mm
Height
293 mm
Depth
62 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
Construction
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
