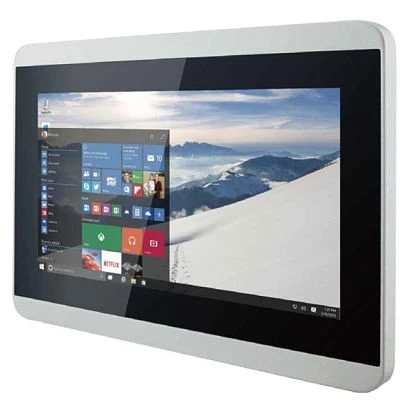

W07IB3S-GCO1

W07IB3S-GCO1

Winmate
SKU: 56892100
Fanless Panel Computer 7" TFT LCD, 1024x600, projected capacitive touch, Intel Celeron Quad Core N2930 1.83GHz, 2GB DDR3LRAM, 64GB mSATA SSD, 2xUSB, 2xGbit LAN, 1xCOM, HDMI, IP65 Front, 12VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
1000 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
189.4 mm
Height
145.4 mm
Depth
37.7 mm
Operating Conditions
Operating Temperature
-10..55 °C
Vibration
2.18 g rms for XYZ/ 5-500Hz
Shock
30g for 18ms
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Construction
Construction Chassis
Metal Chassis
