W07IB3S-EHT1

W07IB3S-EHT1

Winmate
SKU: 07382200

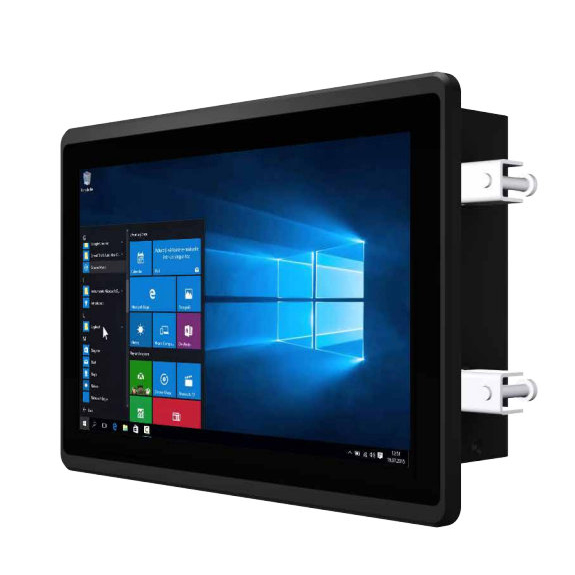

Fanless Panel Computer 7" TFT LCD, 1024x600, projected capacitive touch, Intel Celeron N2930 1.83GHz, 8GB DDR3L, 128GB mSATA SSD, 2xUSB, 2xGbE LAN, 1xCOM, HDMI, power supply 12V DC
Price on request
Available
Available

Construction
Mounting Configuration
Wall VESA 75
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Default on Board Memory
8 GB
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
128 GB
Connectors
Connectors
HDMI
System Power Input
Input Voltage DC
12..12 V
Dimensions and weight
Width
128.6 mm
Height
184.8 mm
Depth
50.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
2 kg
Gross Weight
1 kg
