W07FA3S-PCO1AC-POE

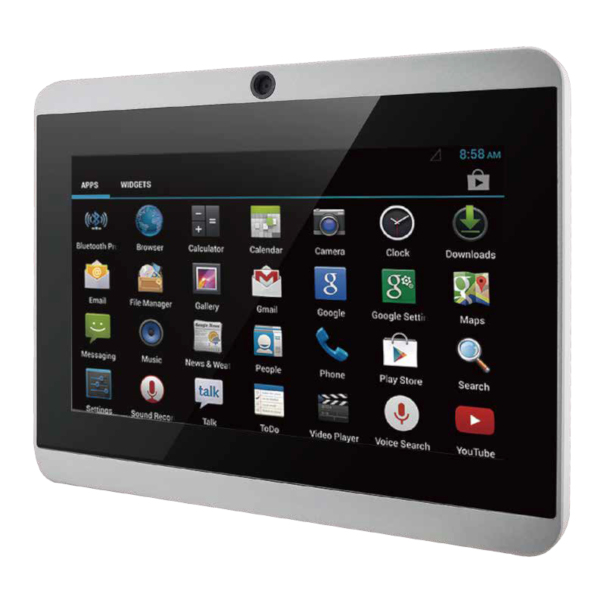

W07FA3S-PCO1AC-POE

Winmate
SKU: 56772100
7" Fanless Panel PC, S Series, IP65 Front, 1024x600, 1000cd/m2, LED Panels, NXP i.MX6 Dual-Core 1.0GHz CPU, 1GB RAM, 16GB eMMC, RFID Opt., 1xMicroHDMI Opt., 1xCOM, 1xCAN, 1xMiniUSB, 1xUSB OTG, 1xUSB 2.0, 1xPoE LAN, 1xMicroSD, 1xmPCIe, 12VDC-in w/ PSU
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX2
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
1000 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
CPU Support Type
ARM Cortex
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Maximum Memory
2 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
LED / Controls
LED
LED Bar
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, DC Input, SD card slot, Micro HDMI
System Power Input
Input Voltage DC
4..9 V
Power Consumption
10 W
Software
Operating System Installed
Android
Dimensions and weight
Width
145.4 mm
Height
189.4 mm
Depth
36.1 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
