W04IM3S-ELT1

W04IM3S-ELT1

Winmate
SKU: 57936900

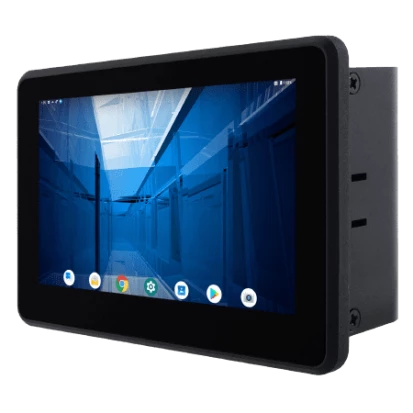

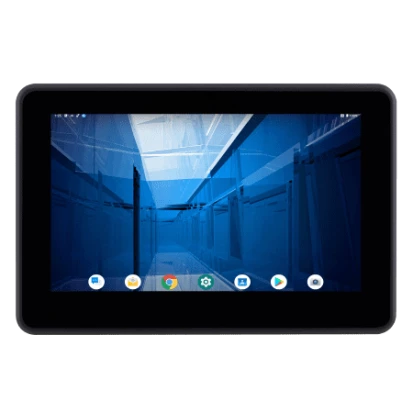

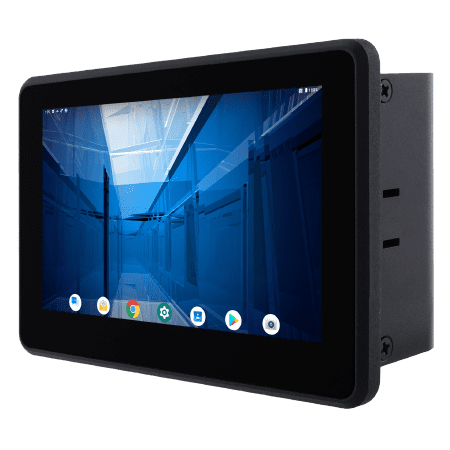

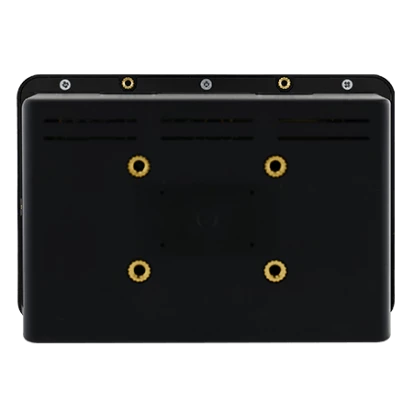

4.3" Fanless Panel PC, EL Series, IP65 Front, 480x272, 400 cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xCOM, 1xUSB 2.0, 1xMicro-USB OTG, 1xGbE LAN, 12-24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
500 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-485
1
USB Total
2
USB 2.0
2
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
LED / Controls
LED
1xHDD LED
Controls
1xReset
Connectors
Connectors
DB9, RJ45 Ethernet, 1xUSB, DC input (terminal block), 1xMicro USB
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu
Operating System Installed
Android
Dimensions and weight
Width
121 mm
Height
82 mm
Depth
49 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg

Documentation
W04IM3S-ELT1-Datasheet.pdf
