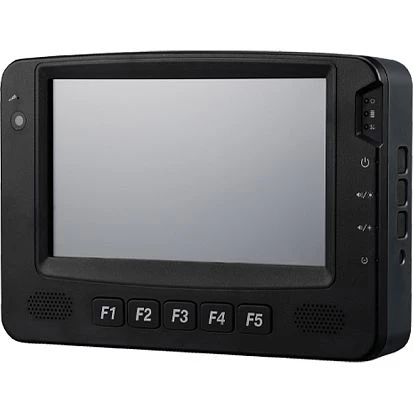

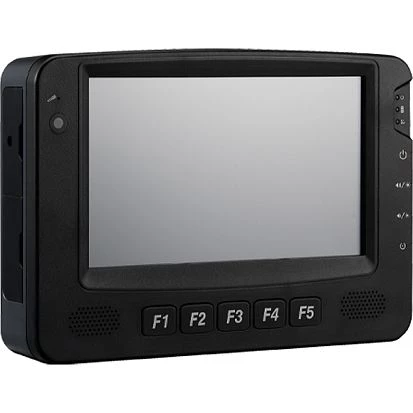

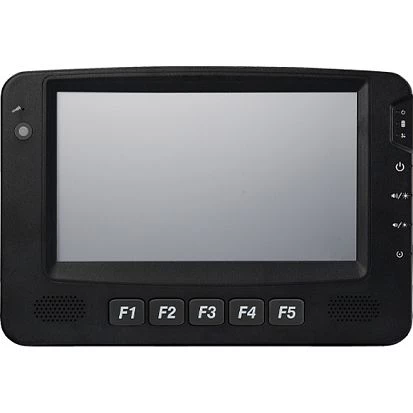

VMC-1110
NEXCOM
SKU: 57961800
7" Vehicle Mount Computer, 1024x600, 1000cd/m2, Resistive Touch, Intel Atom x7211RE 1.0GHz CPU, Up to 32GB DDR5 RAM, 128GB eMMC, HDMI, 1xUSB 3.2, 1x2.5GbE M12 LAN, 2xDB15 (USB, CAN, GPIO, COM), MicroSD, Audio, GPS, 2xM.2 Key-B, 1xM.2 Key-E, 9-36DC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom x7211RE
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i226
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B, 3042 B, 3050 B
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
1xHDD LED, Power LED, WWAN LED
Controls
On/Off, 1xReset, Function Keys, Volume Keys
Connectors
Connectors

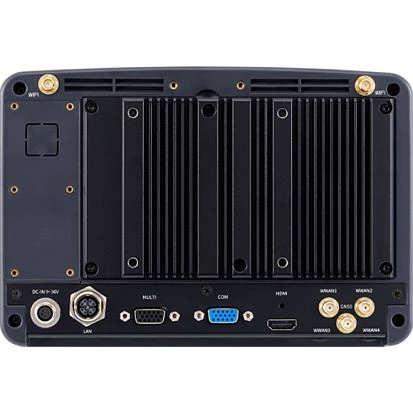

1xUSB, Mic In, Line Out, SIM Card Slot, DB15 CAN Bus, DB15 (COM+GPIO), MicroSD card slot, M12 DC-in, M12 LAN
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
213 mm
Height
50 mm
Depth
145 mm
Operating Conditions
Operating Temperature
-30..60 °C
Humidity
10-90%
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
