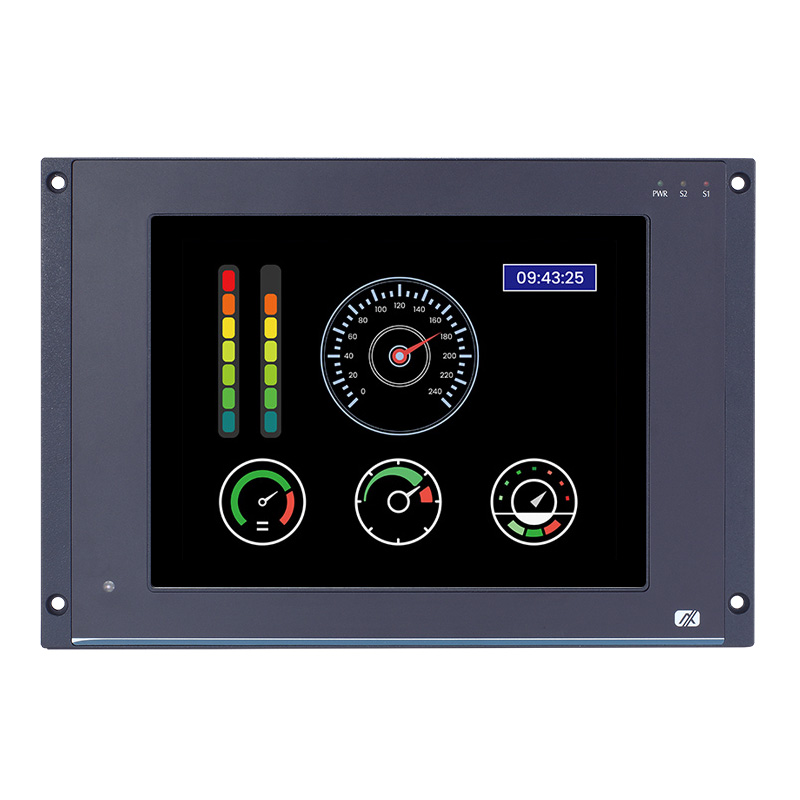

GOT712A-ELK-TC
AXIOMTEK
SKU: 80280900
12.1" Fanless Railway Panel PC, IP65 Front, 1024x768, 600cd/m2, PCAP Touch, Intel Atom x6425E CPU, 8GB DDR4 RAM, 128GB M.2 (SATA) SSD, 7xM12 (2x2.5GbE, 1xDual USB 2.0, 2xCOM, Audio, CAN), 8-bit DIO, 2xMiniPCIe, 1xM.2 Key-E, 24-110VDC-in M12 Connector
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
600 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Atom x6425E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
USB 2.0
1
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
4
M.2
2
M.2 Form Factor
2230 E, 2242 B
Mini-PCIe/Mini Card
2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Connectors
Connectors

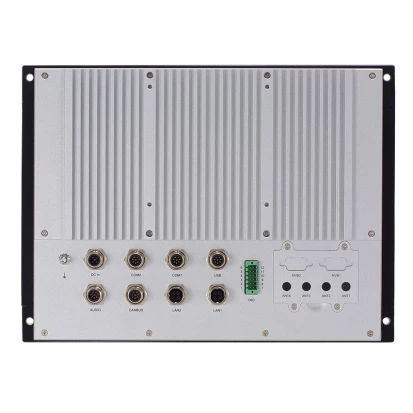

DIO (terminal block), M12 Audio, M12 DC-in, 2xM12 LAN, 1xM12 A-code USB, 2xM12 COM, M12 CAN Bus
System Power Input
Input Voltage DC
24..110 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
330 mm
Height
245 mm
Depth
55 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.22 kg
Gross Weight
5.6 kg
