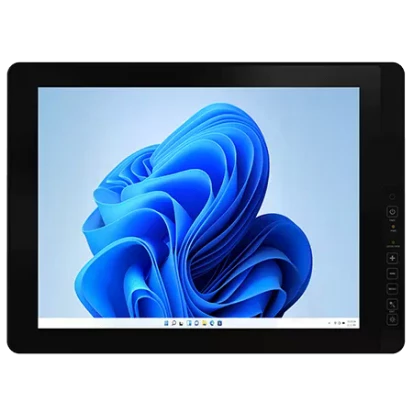

R15IAN3S-VMC3-PHB

R15IAN3S-VMC3-PHB

Winmate
SKU: 80274100

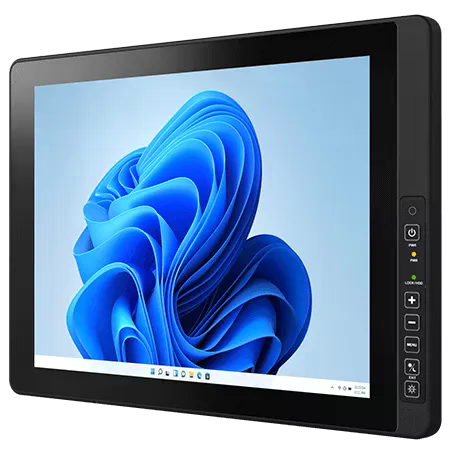

15" Fanless Vehicle Panel PC, G-WIN Series, IP65 Front, 1024x768, 1000 cd/m2, PCAP Touch, Intel N100 CPU, 8GB DDR5 RAM, 128GB NVMe SSD, HDMI, 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 1xUSB-C 3.2 DP alt., 1xM.2 2230 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100, Yoke mounting
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
1000 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, Control Buttons, Function Keys, Volume Keys
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise, Ubuntu 24.04
Dimensions and weight
Width
379.4 mm
Height
278.4 mm
Depth
58 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
3.8 kg
Gross Weight
4.8 kg
