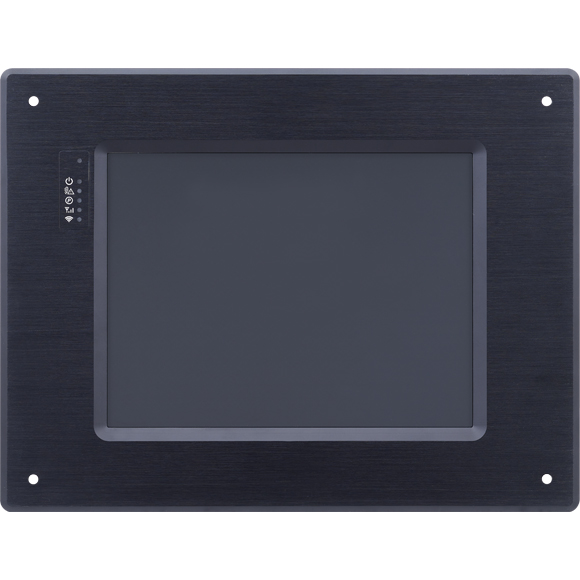

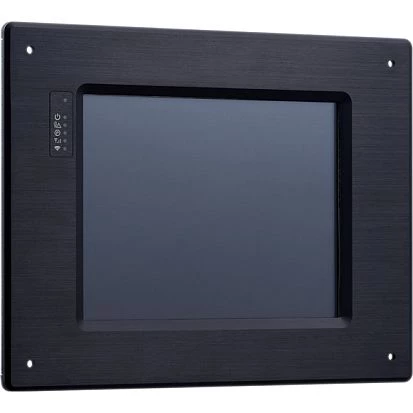

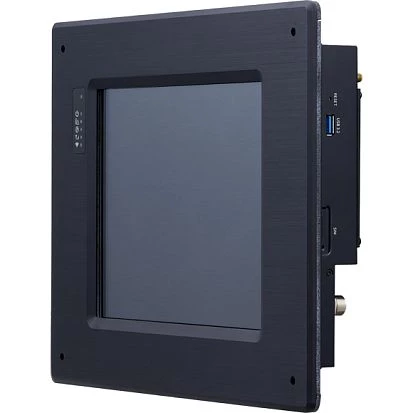

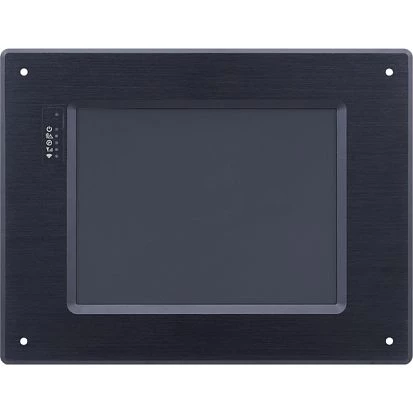

vROK-3030-A-B
NEXCOM
SKU: 80160500
10.4" Railway Panel PC, IP65 Front, 1024x768, 1200cd/m2, PCAP Touch, Intel Atom x6414RE CPU, 4GB DDR4 ECC RAM, 1xHDMI, 1xDP, 2x2.5GbE M12 LAN, 1xUSB, 2xUSB M12, 2xCOM, 1xMultiport (6-bit DIO, CAN), GPS, 1xMiniPCIe, 3xM.2 (Key-M/B/E), 14-48VDC-in M12
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
1200 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6414RE
Socket
FCBGA1493
Max CPU frequency
1.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225IT
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 3050 B
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED, WLAN LED, WWAN LED
Controls
On/Off, 1xReset
Connectors
Connectors

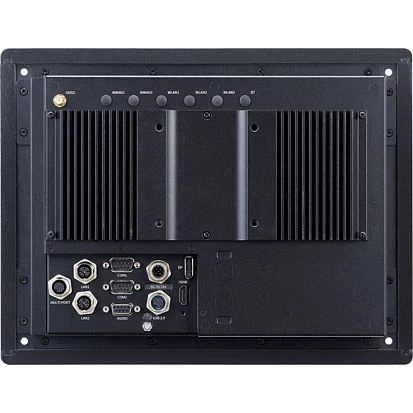

2xDB9, HDMI, Display Port, M12 DC-in, 2xM12 LAN, 1xM12 A-code USB, DB9 Audio, M12 A-code Multi-port
System Power Input
Input Voltage DC
14..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
336 mm
Height
257.6 mm
Depth
73.7 mm
Operating Conditions
Operating Temperature
-30..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Rolling Stock
en_50121, EN 50155, EN 50121-3-2, EN 45545-2
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Net Weight
3.9 kg
Gross Weight
5 kg
