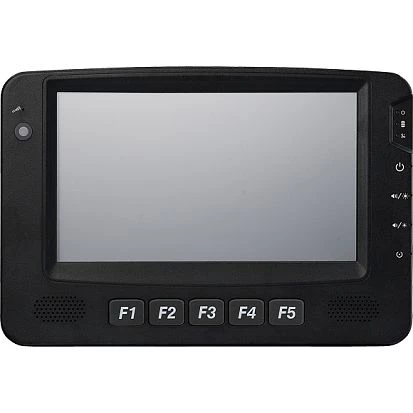

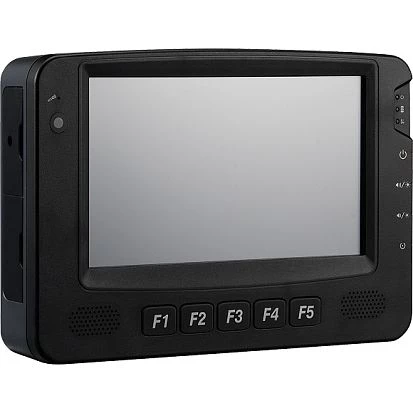

VMC-110-D1A
NEXCOM
SKU: 80074500
7" Vehicle Data Terminal VMC-110, IP54 Front, 1024x600, 500cd/m2, Resistive Touch, i.MX6 1GHz CPU, 2GB DDR3L, 8GB eMMC, 1xLAN, 3xUSB 2.0, 1xMicroUSB, 2xDB15 (2xCOM/2xCAN/GPIO), GPS, Audio/Mic, 1xMicroSD, 2xMiniPCIe, 9-36VDC-in, Android, I/O rear
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Desktop, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Freescale i.MX6 Duallite
Socket
CPU onboard
Max CPU frequency
1 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/485
1
USB Total
4
USB 2.0
4
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Extension Slots
Mini-PCI
2
SIM Card slots
Yes, 1
LED / Controls
LED
1xOn/Off LED, WWAN LED, SSD LED
Controls
On/Off, Function Keys, Volume Keys
Connectors
Connectors
RJ45 Ethernet, 3xUSB, Mic In, Line Out, 1xMicro USB, M12 DC-in, 2xDB15 Multi-port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
212.9 mm
Height
144.97 mm
Depth
40 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
1.3 kg
Gross Weight
1.8 kg
