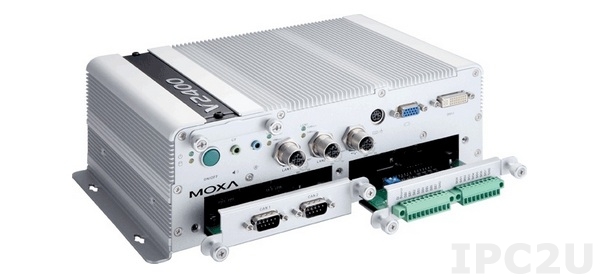

V2426-XPE
MOXA
SKU: 66081500
x86 Ready-to-Run Embedded Computer with VGA, DVI-I, 2 LANs, 4 COMs, 3 USB, 6DI/2DO, CompactFlash, 2 Peripherals Expansion Slots, WinXPe, -25~55C
End-of-life product
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Atom N270
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
3
USB 2.0
3
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DVI-I, DB15 VGA, PS/2 Keyboard/Mouse, Line In, Line Out
System Power Input
Input Voltage DC
12 V
Power Consumption
48 W
Software
Operating System Installed
Windows XP Embedded
Dimensions and weight
Width
154 mm
Height
250 mm
Depth
86 mm
Operating Conditions
Operating Temperature
-25..60 °C
Vibration
EN 50155
Shock
EN 50155
Standards and Certifications
Rolling Stock
EN 50121-4, EN 50155, IEC 61373, EN 50121-3-2
Safety
UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03
Dimensions
Net Weight
2.2 kg
Gross Weight
3.84 kg
