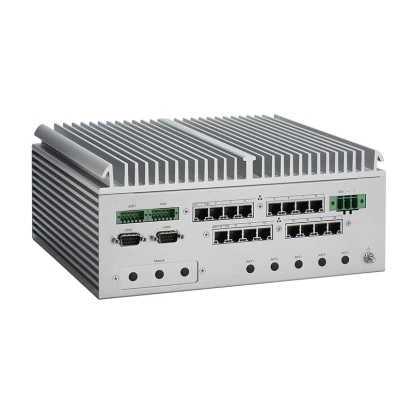

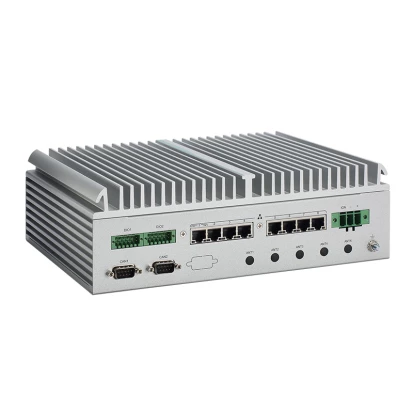

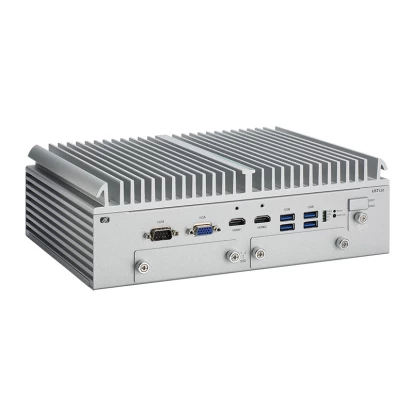

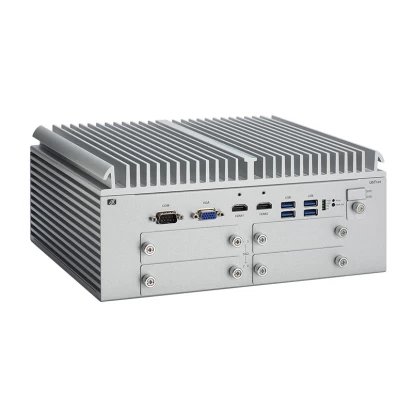

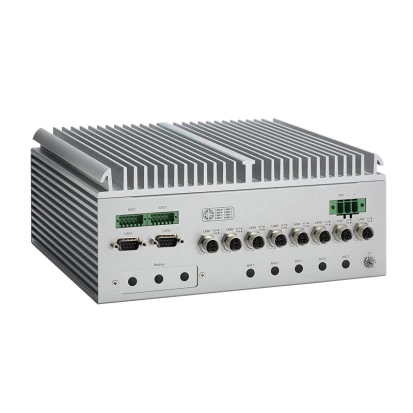

UST520-RLS-B
AXIOMTEK
SKU: 80226200
Fanless Embedded System, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, R680E, Up to 64GB DDR5 RAM, VGA, 2xHDMI, 16x2.5GbE PoE+ LAN, 4xUSB 3.2, 1xCOM, 2xCAN, 2x8-bit DIO, 4x2.5" Drive Bay, 2xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 12/24/48VDC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
16
PoE+ 10/100/1000 Mbit/s
16
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Digital Input
Isolation DIO
Yes
Industrial Interfaces
CAN Port
2
Drive interfaces
SATA 3
4
M.2
1
Storage Cage
Number Of Cage External
4
2.5" Cage External
4
Extension Slots
Total
5
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B
Mini-PCIe/Mini Card
2
SIM Card slots
2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
1xReset
Connectors
Connectors
DB9, DB15 VGA, 2xHDMI, 4xUSB, DC input (terminal block), 2xDIO (terminal block), 2xDB9 CAN, 2xSIM Card Slot, 16xRJ45
System Power Input
Input Voltage DC
12..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
117 mm
Depth
210.5 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A, en55032, en55035
Vehicle
E-Mark
Dimensions
Net Weight
7.3 kg
Gross Weight
9.5 kg
