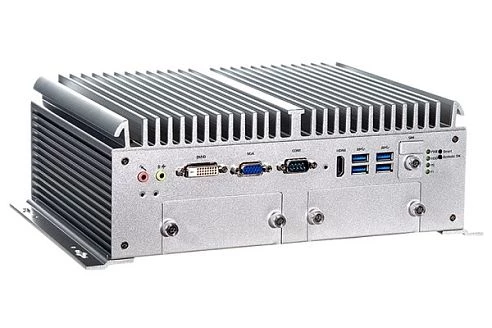

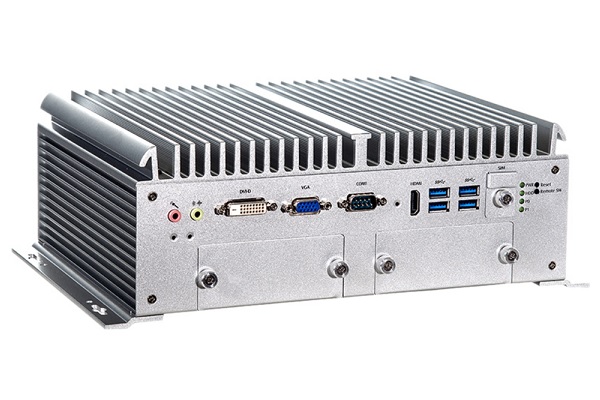

UST500-517-FL-8RJ8M12-4SATATDC

UST500-517-FL-8RJ8M12-4SATATDC

AXIOMTEK
SKU: 08075000
Fanless embedded system, Intel Celeron, Pentium Core i3/i5/i7 6/7th Gen desktop, LGA1151, Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 8x RJ45 PoE, 8x M12, 4 SATA drive, power DC 9-36 V or ACC ignition 24 V DC
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage External
4
Extension Slots
Mini-PCIe/Mini Card
4
SIM Card slots
Yes, 2, Full size Sim-card
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI-D, HDMI, 8xRJ45, 4xUSB, DC Input, 8xM12, 2xLine Out, 2xMic In
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows 7, Windows 8, Linux OS, Windows 10
Dimensions and weight
Width
280 mm
Height
99.2 mm
Depth
210.5 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)
Standards and Certifications
Certifications
CE, FCC
Rolling Stock
EN 50155
Vehicle
E-Mark
Dimensions
Net Weight
4.9 kg
Gross Weight
5.75 kg
