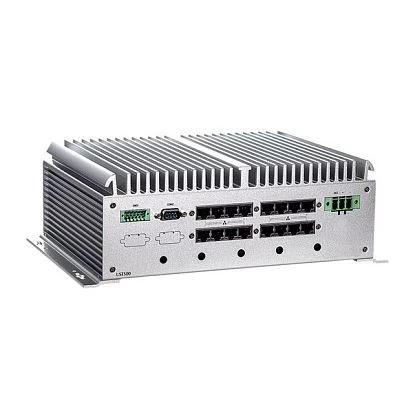

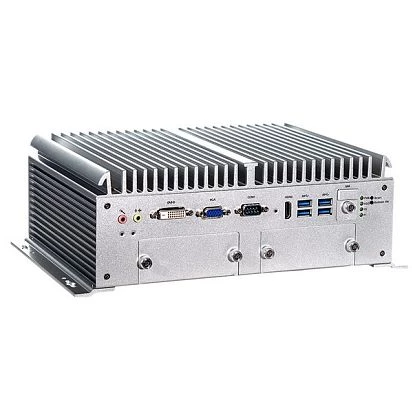

UST500-517-FL-8M12-4SATA-TDC

UST500-517-FL-8M12-4SATA-TDC

SKU: 08286300

Fanless embedded system, Intel Celeron, Pentium Core i3/i5/i7 6/7th Gen desktop, LGA1151, Q170, VGA, DVI-D, HDMI, 6-in/2-out DIO, 2 COM, 4 USB 3.0, 8xPoE M12 GbE LAN, 4 SATA drive, power DC 9-36 V or ACC ignition 24 V DC

Price on request

Construction

Construction Chassis

Metal Chassis with Aluminium Heatsink

Mounting Configuration

Embedded, Desktop, Wall

Protection Level of Chassis

IP40

Type

Fanless

CPU

СPU Generation/Family

Skylake

Socket

LGA1151

Memory

Form-factor

DDR4

Maximum Memory

64 GB

Assembly

Removable

Interfaces

COM Total

2

RS-232/422/485

2

USB Total

4

USB v3.x

4

Drive interfaces

mSATA

1

Storage Cage

Number Of Cage External

4

2.5" Cage External

4

Extension Slots

Total

4

Mini-PCIe/Mini Card

4

SIM Card slots

2

Additional Functions

Watchdog timer type

Software

Connectors

Connectors

2xDB9, DVI, DB15 VGA, HDMI, 4xUSB, Mic In, Line Out, DC Input, 8xM12, DIO (terminal block)

System Power Input

Input Voltage DC

9 V

Power Consumption

218 W

Software

Operating System Compatibility

Windows 7, Windows 8, Linux OS, Windows 10

Dimensions and weight

Width

280 mm

Height

99.2 mm

Depth

210.5 mm

Operating Conditions

Operating Temperature

-40..70 °C

Vibration

3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)

Standards and Certifications

Certifications

CE, FCC

Rolling Stock

EN 50155

Vehicle

E-Mark

Dimensions

Net Weight

4.9 kg

Gross Weight

5.75 kg

Documentation

Datasheet UST500-517-FL
