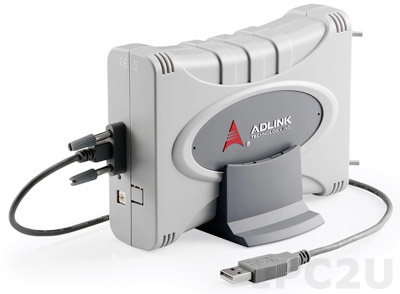

USB-7250
ADLink
SKU: 06339000
USB-7250; 8-CH isolated DI & 8-CH relay 220VDC/250VAC, 2A output USB DIO, up to 48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Digital Input
Total channels of digital input
8
Level of Logic "0"
0~1.5 V
Level of Logic "1"
5~24 V
Isolation of Digital Input
2500 V
Number of channels
2
Counter capacity
32 Bit
Max frequency
1 kHz
Digital Output
Total channels of digital output
8
Relay (Form A)
4
Contact rating of relay (Form A)
05A@120V AC, 2A@30V DC
Relay (Form C)
4
Contact rating of relay (Form C)
2A@30V DC, 0.5A@120V AC
Connectors
Connectors
20-pin box header
System Power Input
Input Voltage DC
5..5 V
Dimensions and weight
Width
42 mm
Depth
157 mm
Height
114 mm
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
0.5 kg
