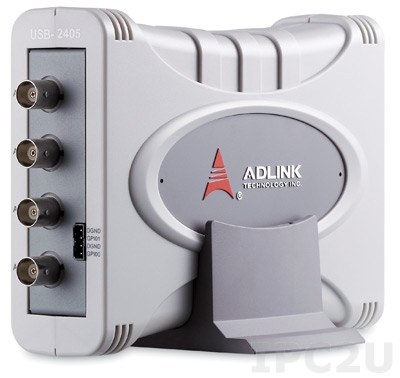

USB-2405
ADLink
SKU: 06698000
4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 module, up to 48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Analog Input
Total channels of analog input
4
Number of Bits
24 Bit
Voltage range
+/-10 V
Sampling rate
128 Hz
Frequency Input
0...50 kHz, 0...20 kHz
Digital Input
Total channels of digital input
2
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
2
Output voltage
0~5 V
Connectors
Connectors
4xDIO
System Power Input
Input Voltage DC
5..5 V
Dimensions and weight
Width
42 mm
Depth
157 mm
Height
114 mm
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
