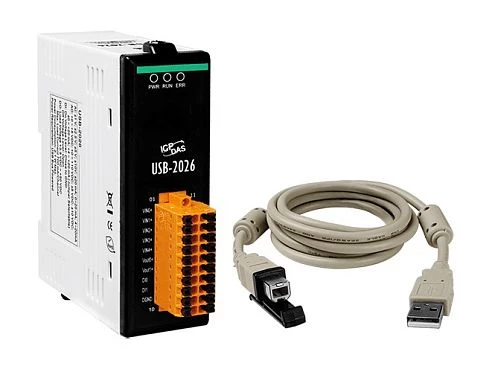

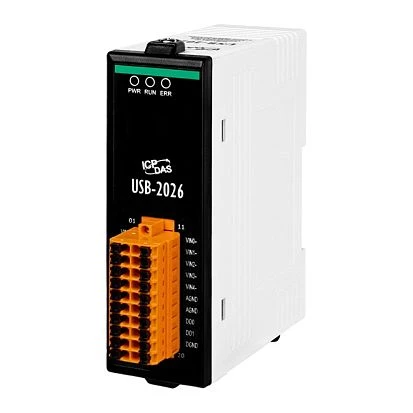

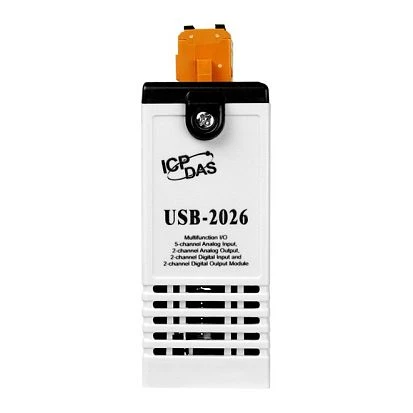

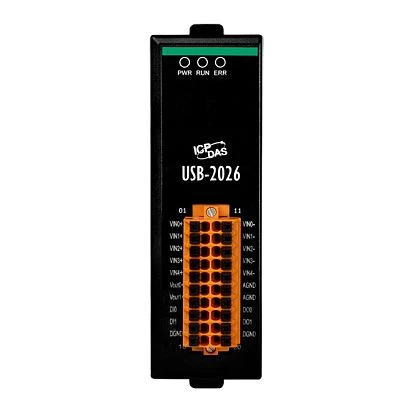

USB-2026
ICP DAS
SKU: 06888300
5-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Additional Functions
Watchdog timer type
Hardware, Software
Analog Input
Total channels of analog input
5
Number of Bits
14 Bit
Voltage range
+/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
5
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
2
Type
Dry contact
Sink/Source
Dry: Source
Number of channels
2
Counter capacity
32 Bit
Max frequency
0.1 kHz
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
