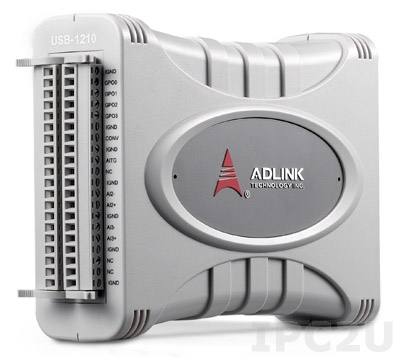

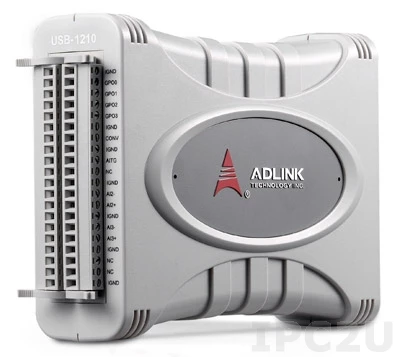

USB-1210
ADLink
SKU: 06697900
4-CH 16-Bit 2MS/s Simultaneous-Sampling USB DAQ Module, up to 48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-10 V, +/-2 V
Sampling rate
2000 Hz
Differential channels
4
Digital Input
Total channels of digital input
8
Level of Logic "0"
0~0 V
Level of Logic "1"
5~5 V
Number of channels
2
Counter capacity
32 Bit
Max frequency
80 kHz
Digital Output
Total channels of digital output
4
Output voltage
0~5 V
Channels
2
Output frequency range
0~5 MHz
Connectors
Connectors
20-pin box header
System Power Input
Input Voltage DC
5..5 V
Dimensions and weight
Width
42 mm
Depth
157 mm
Height
114 mm
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Gross Weight
1 kg
