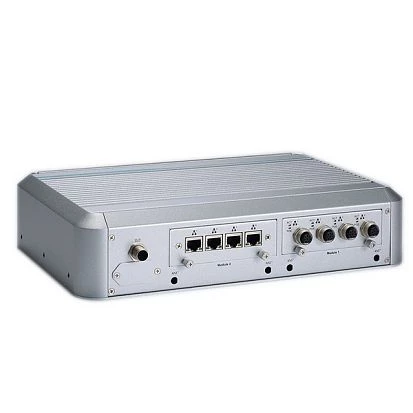

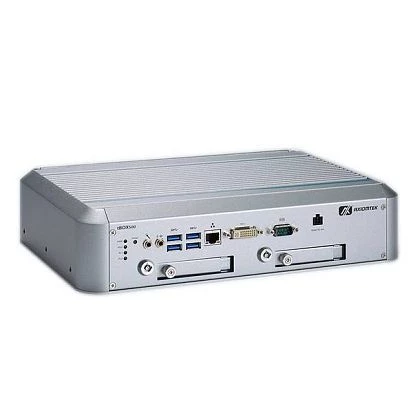

tBOX500-510-FL-i3-TVDC
AXIOMTEK
SKU: 08424100
Fanless railway-grade embedded system with Intel Core i3-7100U 2.4GHz CPU, DDR4, DVI-I, GbE LAN, COM, 4xUSB 3.0, 2x2.5" SATA trays, mSATA, Audio, 9-36 V DC, -40...+70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DVI-I, RJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
321 mm
Height
73.3 mm
Depth
210.2 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms
Shock
50 Grms
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155, EN 50121-3-2, EN 45545-2
Safety
DNV 2.4, IEC 60945 (4th), EN 60950-1
Vehicle
ISO 7637-2, E-Mark
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DVI-I, RJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
321 mm
Height
73.3 mm
Depth
210.2 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms
Shock
50 Grms
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155, EN 50121-3-2, EN 45545-2
Safety
DNV 2.4, IEC 60945 (4th), EN 60950-1
Vehicle
ISO 7637-2, E-Mark
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DVI-I, RJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
321 mm
Height
73.3 mm
Depth
210.2 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms
Shock
50 Grms
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155, EN 50121-3-2, EN 45545-2
Safety
DNV 2.4, IEC 60945 (4th), EN 60950-1
Vehicle
ISO 7637-2, E-Mark
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i3-7100U
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DVI-I, RJ45, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
321 mm
Height
73.3 mm
Depth
210.2 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms
Shock
50 Grms
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155, EN 50121-3-2, EN 45545-2
Safety
DNV 2.4, IEC 60945 (4th), EN 60950-1
Vehicle
ISO 7637-2, E-Mark
Dimensions
Net Weight
3.5 kg
Gross Weight
4.5 kg
