Super 10.4-C-J1900

Super 10.4-C-J1900

LEX COMPUTECH
SKU: 07776500

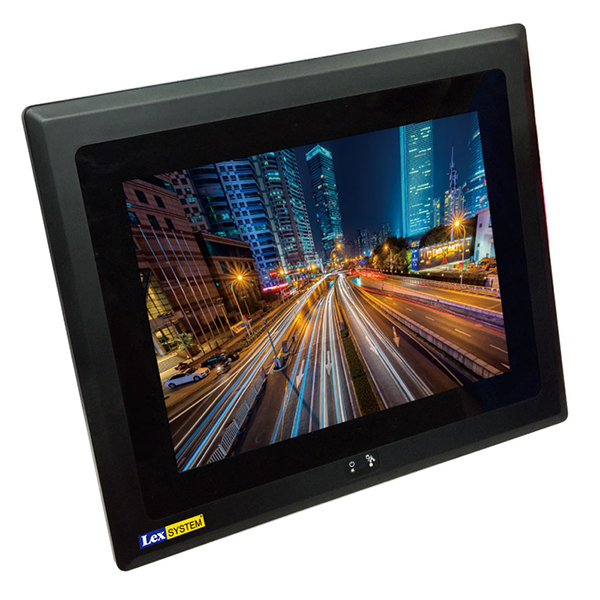

10.4" TFT LCD Fanless Panel PC, capasitive touch, 3I385CW-D90, Intel Celeron J1900 2GHz, DDR3L SODIMM, 1x2.5" HDD, 2xGbE LAN, 4xCOM, 4xUSB 3.0, VGA, DVI, DC-in Power Jack, TB 2pin Power connector (DC-in 9...36V)
776,86 €
Price excl. VAT and shipping cost
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Embedded, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen7 graphic engine
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off, Control Buttons
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC Input, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
296 mm
Height
250.4 mm
Depth
66.79 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
1.9 kg
Gross Weight
3 kg
