ST12253

ST12253

LEX COMPUTECH
SKU: 56086000

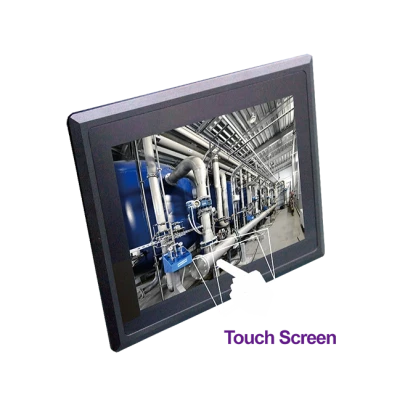

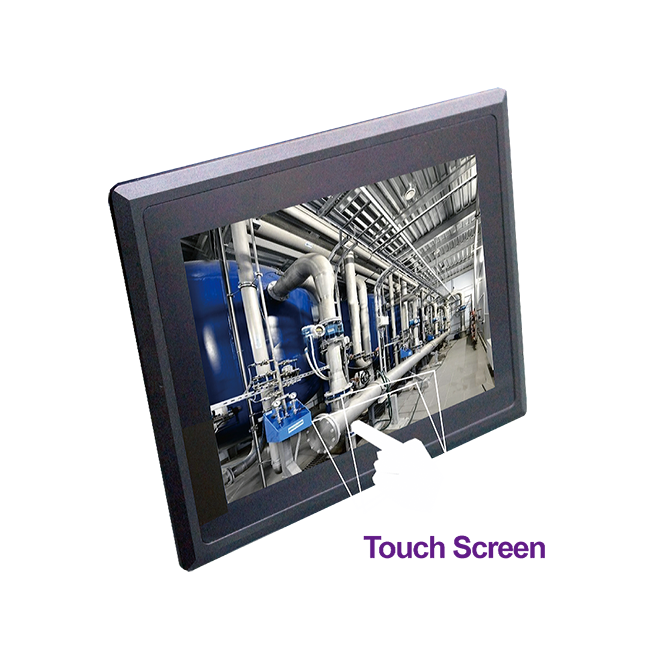

10.4" TFT LCD Fanless Panel PC, Touch Screen, Intel Atom E3845 1.91GHz 2I385CW CPU Board, 4GB DDR3L onboard, VGA, 2xGbit LAN, 4xCOM, 4xUSB, 2.5" SATA Drive Bay, mSATA, 1xMini-PCIe, 9..36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Socket
FCBGA1170
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
4
USB Total
4
USB 2.0
4
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off
Connectors
Connectors

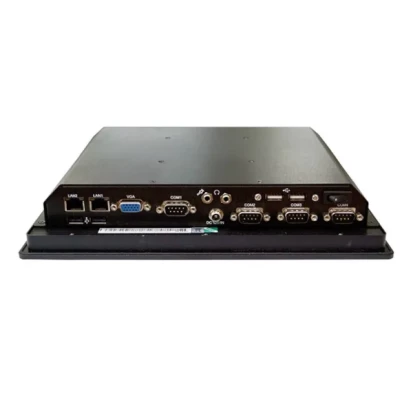

4xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
279.5 mm
Height
231 mm
Depth
54 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC, en50155/50121
Dimensions
Net Weight
4 kg
Gross Weight
7 kg
