SM-115PW/PM-3100

Arestech
SKU: 57646000

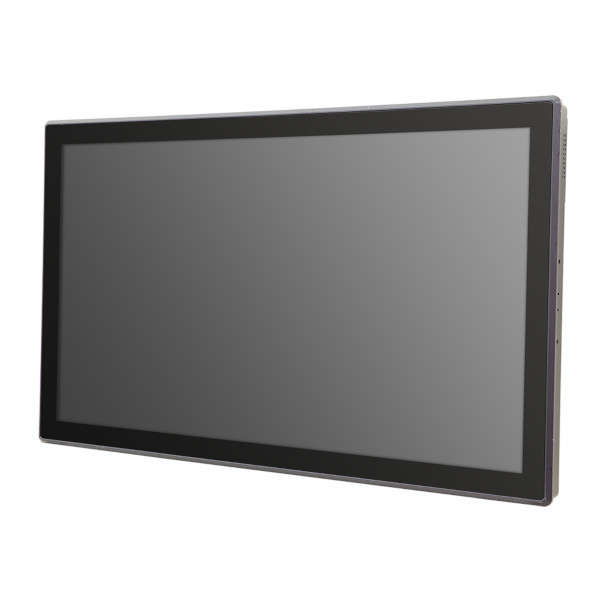

15.6" TFT LCD Fanless Panel PC, 1920x1080, 1600 cd/m2, IP65 Front, PCAP touch, Intel Core-i 9th/8th Gen. LGA1151, up to 64GB DDR4, 2x 2.5" SATA drive bays, CFast, VGA/DP/DVI-D, 2xLAN, 6xUSB, 6xCOM, 16xDIO, Audio, 9-48 VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
15.6 "
Aspect Ratio
16:9
Brightness
1600 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
5
USB 2.0
4
Audio
Audio Controller
Realtek ALC888
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
Connectors
Connectors
6xDB9, DVI, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port, 2xUSB (4-pin), 10-pin connector, Jack 3.5
Dimensions and weight
Width
527 mm
Height
323 mm
Operating Conditions
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
5 kg
Gross Weight
7 kg
