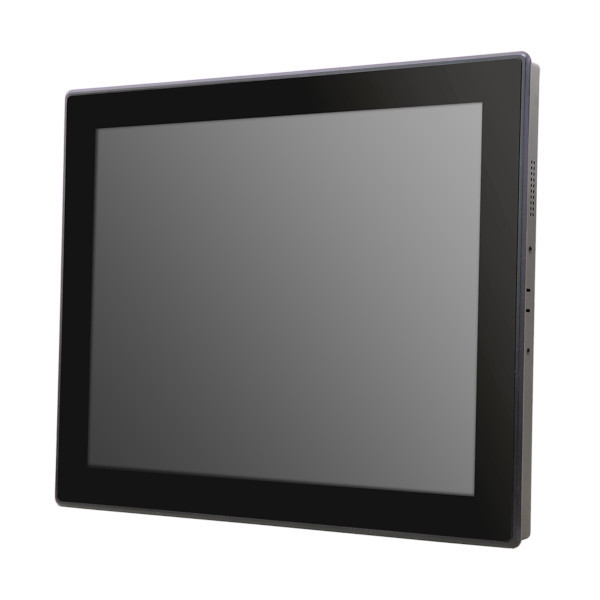

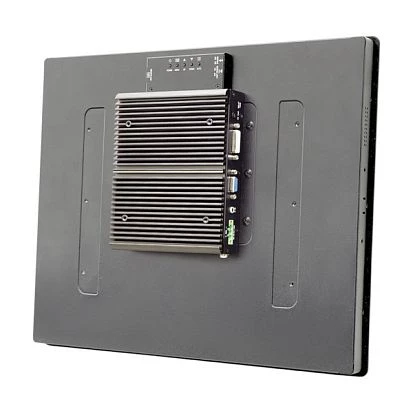

SM-110P/VM-2100
Arestech
SKU: 57641400
10.4" XGA Modular Touch Monitor, 1024x768, 1600 cd/m2, IP65 Front, PCAP touch,1x VGA, 1xDVI, 1xDP, 1xUSB/COM touch interface, 9..+48VDC-in, -10..60C Operating temperature
Price on request
Available
Available
Construction
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
1600 Cd/m2
Contrast Ratio
1000~1
Input Interface
DisplayPort, VGA, DVI
Touch Screen
Touch Screen Type
Capacitive
Interface
RS-232, USB
Connectors
Connectors
DVI, DB15 VGA, DC Input, Display Port
System Power Input
Input Voltage DC
9..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-85%
Vibration
1.5 Grms, 5-500 Hz, 3 Axis
Shock
20 Grms, Half-sine 11 ms
Temperature (Storage)
-20~+70
Dimensions and weight
Width
280.6 mm
Height
227.9 mm
Depth
65.5 mm
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
3.2 kg
Gross Weight
4.5 kg
